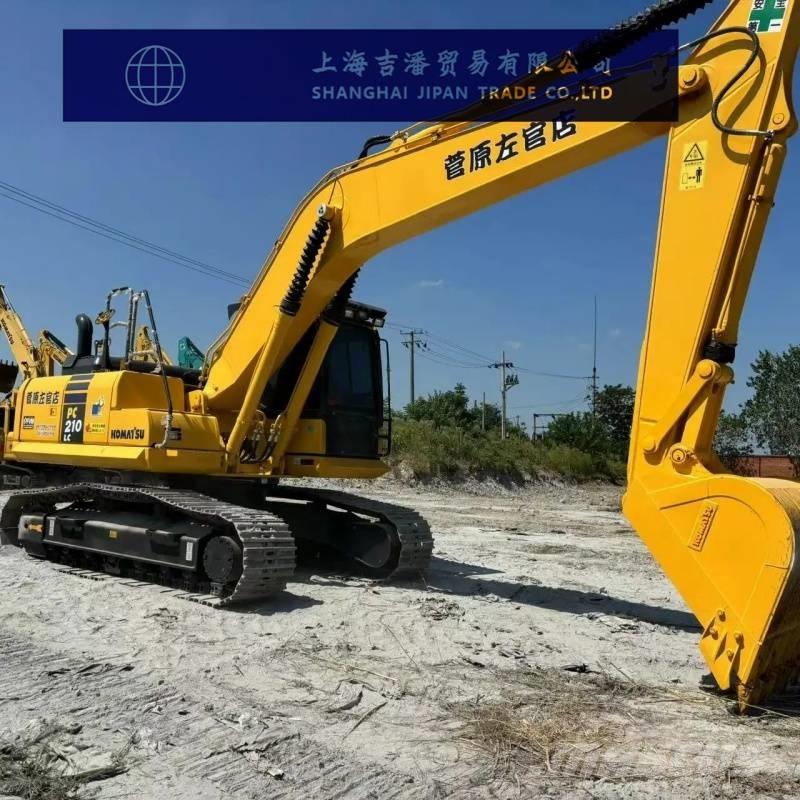

Komatsu PC 210-8
Prijs excl. BTW
Afdrukken
INFORMATIE
Productgroep
Rupsgraafmachines
Merk / model
Komatsu PC 210-8
Bouwjaar
2025
Aantal gebruiksuren
560 h
Land
China
Algemene score
1
2
3
4
5
Mascus ID
F4DB749F
PRIJZEN
Valuta kiezen
DETAILS
Voorraad nummer
1
Type
Diesel
Serienummer
1
Aantal vorige eigenaren
1
Laatste inspectie
2025-08-25
Staat van het onderstel
good condition
Motor
Original
Totaalgewicht GVW
20.550 kg
Motor vermogen
103 kW (140 pk)
Motorfabrikant
Komatsu
Kentekennummer
1
Emissieklasse
Fase V
Inhoud graafbak
0,94 m3
Rupsbreedte
600 mm
Topsnelheid
5,50 km/h
Afmetingen (LxBxH)
9425 x 2800 x 2970 mm
Originele kleur
Yellow
Lengte lepelsteel
2.925 mm
Voorwaarden info/Garantie
1 year
Land van productie
Japan
Leveringsvoorwaarden
FCA, FOB, CIF, EXW
Certificaten
EPA, CE
Toebehoren
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET
TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET
CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours:24 hours, holidays and Sundays
Contact: Lily
Whatsapp: +86 17756597429
Mobile:+86 17756597429
Wechat:17756597429
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accessoires
Slangbreukbeveiliging hefcilinder
Slangbreukbeveiliging knikcilinder
Airconditioning
Motor voorfilter
Puinriek
Zwaailicht
Extra materiaal
Stuurknuppel
Standaard graafbak
Overige informatie
Komatsu PC210-8M0 excavator parameter configuration
specification
Power: Traditional power
Joint ventures/imports
Bucket backhoe
The working weight of the whole machine (kg) is 20100-20550
Bucket capacity (m³) 0.94
Boom length (mm) 5700
Stick length (mm) 2925
Origin: Changzhou, Jiangsu Province
Tonnage (tons) 21
performance
Rotation speed (rpm) 12.4
Travel speed (km/h) 5.5/4.1/3.0
Climbing ability (%) 70% (35°)
Grounding specific pressure (Kpa) 35.7/46.5
Bucket digging force (kN) 149
Stick digging force (kN) 108
Maximum traction (kN) 178
dynamical system
Engine model Komatsu SAA6D107E-1
Rated power (kw/rpm) 103/2000
Displacement (L) 6.69
Number of cylinders (pcs) 6
Bore × stroke (mm) 107×124
Cooling method: Water cooling
Working form: water-cooled, 4-stroke, direct injection; Turbocharged, after-cooled
Hydraulic system
Main pump type variable piston pump
Traveling Hydraulic Motor Type Axial Piston Motor ×2 (with Parking Brake)
Slewing Hydraulic Motor Type Axial Piston Motor ×1 (with Slewing Holding Brake)
The maximum flow rate of the main pump (l/min) is 439
Pilot oil circuit (MPa) 3.2
Working hydraulic oil circuit (Mpa) 37.3
Travel Hydraulic Circuit (Mpa) 37.3
Slewing hydraulic circuit (Mpa) 28.9
Boom cylinder - number × bore × stroke (mm) 2-120× 1334×85
Stick cylinder - number × bore × stroke (mm) 1-135× 1490×95
Bucket cylinder - number × bore × stroke (mm) 1-115× 1120×80
Oil capacity
Fuel tank (L) 400
Hydraulic Tank (L) 135
Engine oil change volume (L) 23.1
Coolant (L) 20.4
Body size
Total length of transport (mm) 9425
Total width of transport (mm) 2800
Total Transport Height (mm) 2970 (to boom top)
Cab total height (mm) 3040
Boarding width (mm) 2710
Track grounding length (mm) 3275
Total track length (mm) 4070
Track shoe width (mm) 600
Total Track Width (mm) 2800
Track gauge (mm) 2200
Minimum ground clearance (mm) 440
Counterweight ground clearance (mm) 1085
The minimum turning radius of the front working device (mm) is 3040
Rear end slewing radius (mm) 2750
Scope of work
Maximum digging radius (mm) 9875
The maximum excavation radius of the shutdown surface (mm) is 9700
Maximum digging depth (mm) 6620
Maximum digging height (mm) 10000
Maximum unloading height (mm) 7110
Maximum vertical digging depth (mm) 5980
Maximum effective digging depth (mm) 6370
Boom offset (left/right °) None
Boom slewing angle (left/right °) None
Width × height of bulldozer plate (mm) None
Dozer shovel lifting or pushing depth (mm) None
