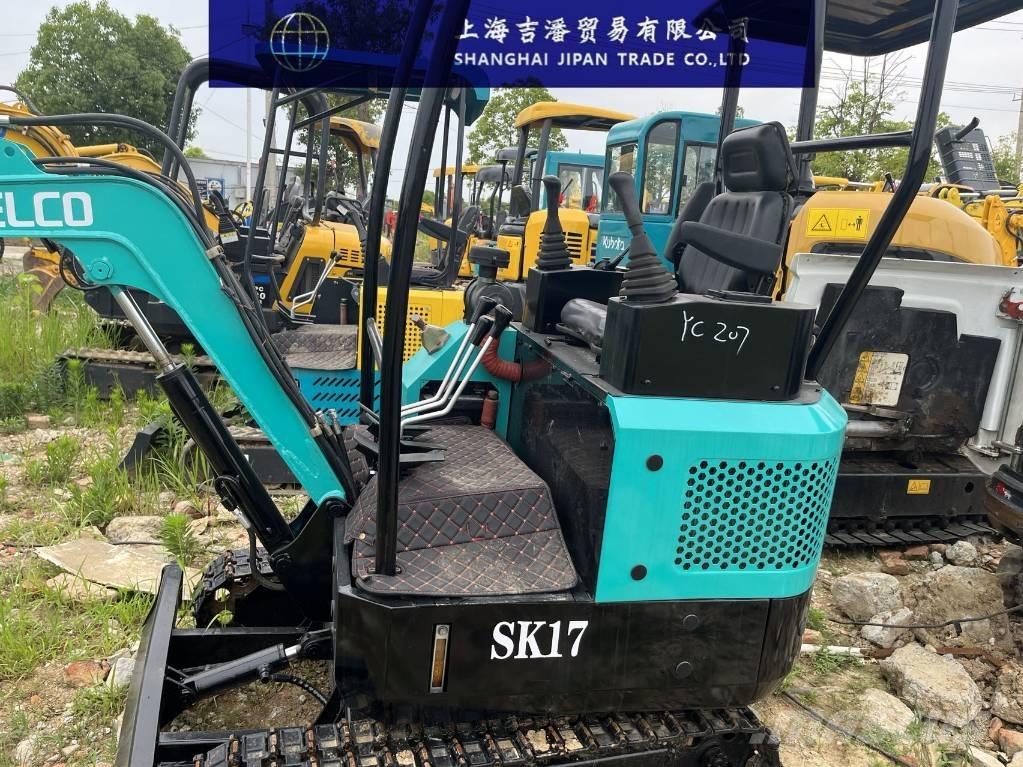

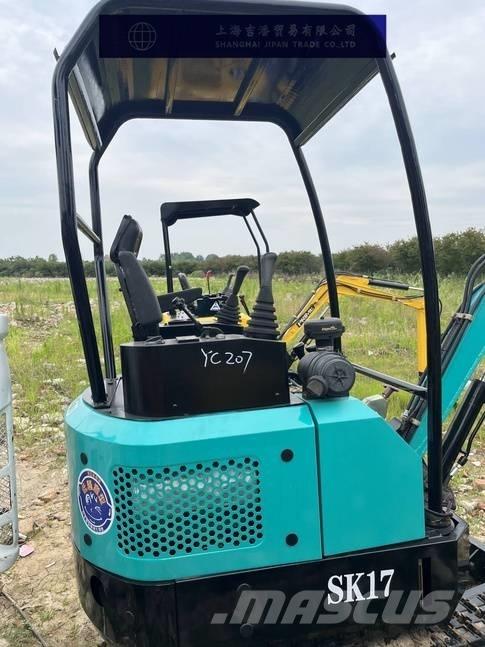

Kobelco SK 17

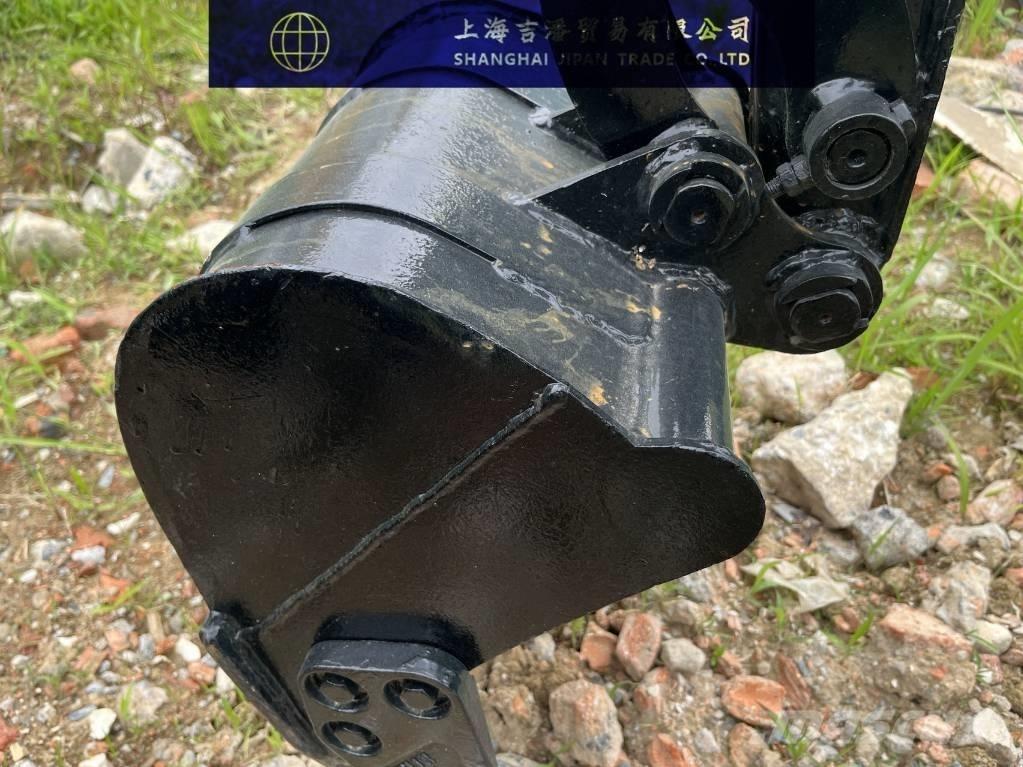

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Kobelco SK17 series excavator has multiple models, taking SK17SR-3E and SK17SR-5E as examples, its main parameters are as follows: - **SK17SR-3E** - **Engine**: Model Yanmar 3TNV70-SYB, a vertical, 4-stroke water-cooled diesel engine rated at 10.4 kW/2200 rpm (ISO 14396), with a displacement of 0.854 liters and a fuel tank capacity of 22 liters. - **Digging Force**: The excavation force of the standard bucket is 15.2 kN, and the excavation force of the standard boom is 8.7 kN. - **Hydraulic System**: Adopts tandem variable piston pump with a maximum displacement flow rate of 2×16.3 l/min, 1×11.4 l/min (extra), relief valve set pressure of 21.6 megapascals (boom, stick and bucket), hydraulic tank capacity of 9.0 litres (tank level), 23 litres (hydraulics). - **Walking Performance**: The traveling motor is a variable plunger motor with a travel speed of 4.0/2.0 km/h, a slewing speed of 8.6 rpm, a traction pulling force of 19.8 kNm (SAE), and a climbing capacity of 58% (30°). - **SK17SR-5E** - **Engine**: Model Yanmar 3TNV74F-SPBV, it is a Tier 4 water-cooled 4-stroke 3-cylinder engine with a net power of 11 kW, a displacement of 1.0 liters, and a fuel tank capacity of 20 liters. - **Hydraulic System**: Adopts two variable pumps Two gear pumps (one for the pilot pump) with a maximum displacement flow rate of 2×17.6 l/min, 1×13.2 l/min, and 1×11.2 l/min. - **Digging Force**: The bucket digging force is 12.6 kN and the traction pulling force is 18.3 kN. - **Dimensions**: The track width is 230 mm, and the track can be easily retracted by operating a simple joystick, with a width of 950 mm when retracted and 1280 mm when extended. - **Working Range**: The maximum digging depth is approximately 2.2 meters, and the maximum digging radius is approximately 3.81 meters.
