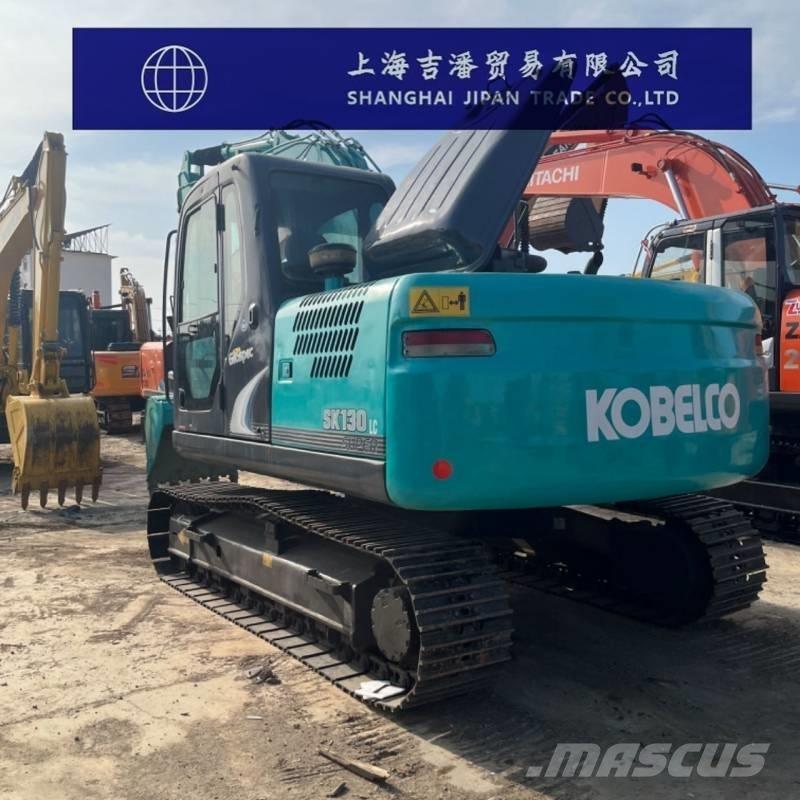

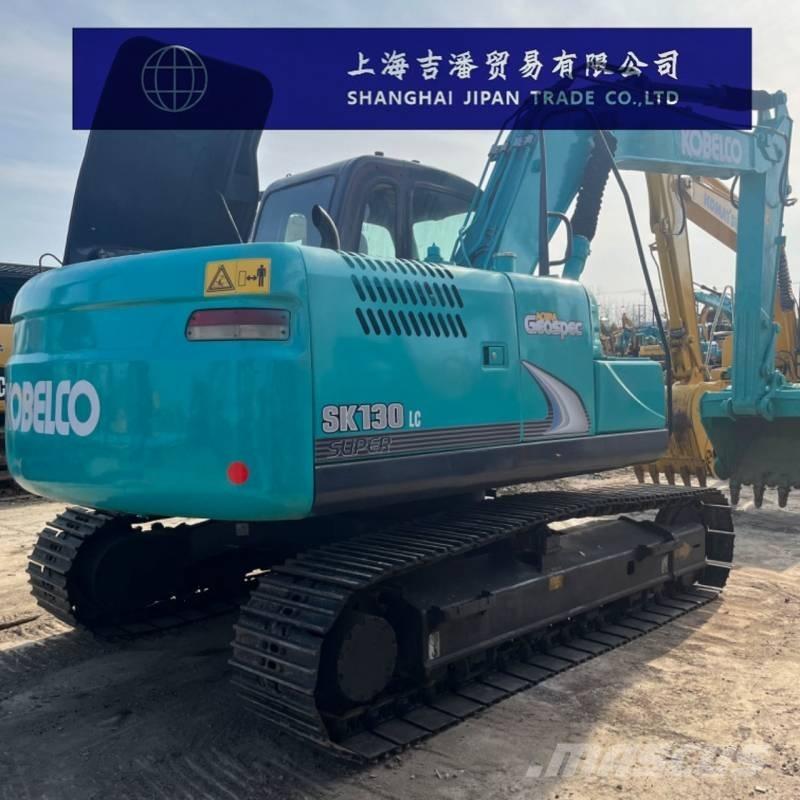

Kobelco SK 130

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Kobelco SK130-11 China IV Excavator Parameter configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 13 The working weight of the whole machine (kg) is 13300 Bucket capacity (m³) 0.52 Boom length (mm) 7770 Stick length (mm) 2810 performance Travel speed (km/h) 5.6/3.4 Bucket digging force (kN) 100.2 Stick digging force (kN) 64.1 Maximum traction (kN) 142 dynamical system Engine model ISUZU 4JJ1-XDRAG-02B-C4 Rated power (kw/rpm) 78.5/2000 Maximum torque (N.m) 375/1800 Displacement (L) 2.999 Number of cylinders (units) 4 Bore × stroke (mm) 95.4*104.9 Cooling method: Water cooling Working form 4-stroke, overhead camshaft, direct injection, built-in intercooling, turbocharging Body size Total length of transport (mm) 7770 Total Transport Width (mm) 2490 Total height of transport (mm) 2730 Cab total height (mm) 2810 Total track length (mm) 3580 Track shoe width (mm) 500 Track gauge (mm) 1990 Minimum ground clearance (mm) 400 Counterweight ground clearance (mm) 910 The minimum turning radius of the front working device (mm) is 2750 Rear end turning radius (mm) 2190 Scope of work Maximum digging radius (mm) 8340 The maximum excavation radius of the stopping surface (mm) is 8170 Maximum digging depth (mm) 5520 Maximum digging height (mm) 8490 Maximum unloading height (mm) 6080 Maximum vertical digging depth (mm) 5190 Dozer shovel lifting or pushing depth (mm) 500/590
