Hitachi ZX 490 LCH-7

Prijs excl. BTW

Images1

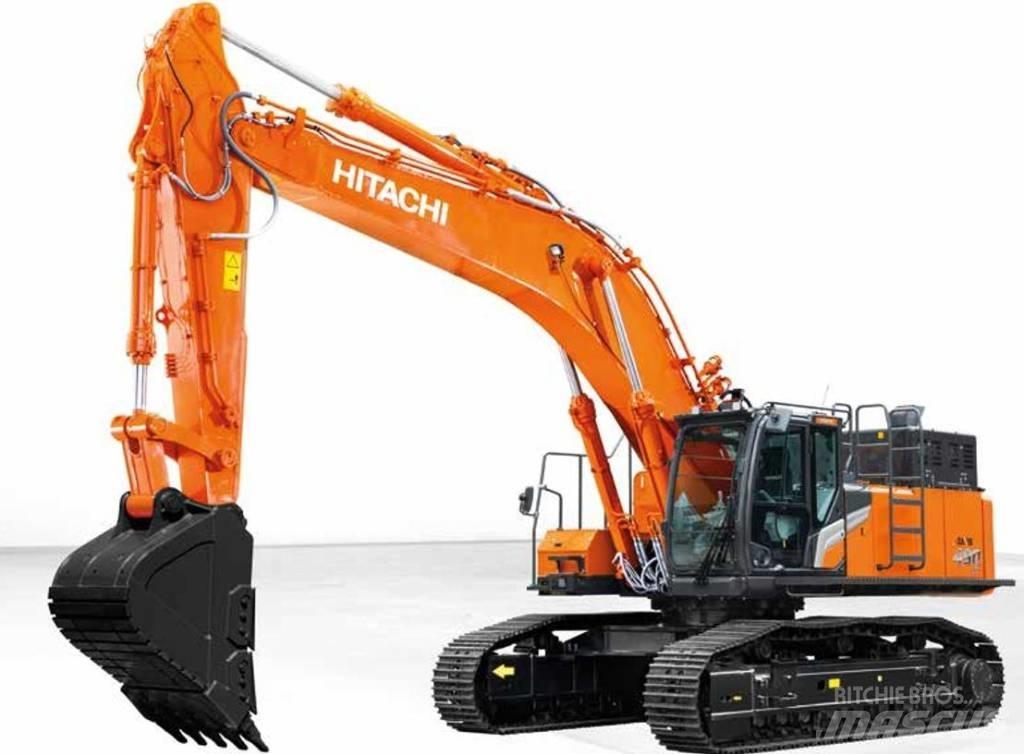

Hitachi ZX 490 LCH-7 Rupsgraafmachines
FavoriteFavoriet
shareDelen
Save searchZoekopdrachten bewaren
Afdrukken

INFORMATIE

Productgroep
Rupsgraafmachines
Merk / model
Hitachi ZX 490 LCH-7
Bouwjaar
2024
Aantal gebruiksuren
3 h
Status
Nieuw/ongebruikt
Land
Polen
Mascus ID
C5408334

PRIJZEN

Valuta kiezen

DETAILS

Type
Diesel
Motor
AQ-6UZ1X
Totaalgewicht GVW
50.400 kg
Motor vermogen
296 kW (402 pk)
Motorfabrikant
ISUZU
Emissieklasse
Fase V
Inhoud graafbak
2,80 m3
Rupsbreedte
600 mm
Vermogen aanvullende hydraulica
385 l/min
Afmetingen (LxBxH)
12010 x 2990 x 3330 mm
Lengte lepelsteel
3.400 mm
Overige informatie
informacje !EXPORT ONLY! DM GROUP – Export from Poland We export new and used vehicles all over Europe. Our offer includes passenger cars, vans, trucks, construction and agricultural equipment. on the stock HITACHI ZX490LCH-7 TECHNICAL DATA: Modern ISUZU AQ-6UZ1X engine with a power of 296 kW/397 HP at 1,800 rpm. The engine complies with exhaust emission standards, stage TIER V Exhaust gas treatment via oxidation catalytic converter + CSF system and SCR system. AdBlue tank capacity: 95 liters. Turbocharging with variable geometry, intercooling and cooled EGR system. Weight 50.4 tons Maximum loading capacity of the bucket: 2.8 m3 H-type reinforced monoblock boom - 7.0 m with HRV valves H-type reinforced bucket arm - 3.40 m Bucket digging force 302 kN Reinforced LCH type chassis with the possibility of widening. Two hydraulic piston pumps with variable capacity. Capacity 2x385 l/min. Working pressure 319 (353) bar (in Powerboost mode). Turret rotation speed 9.6 rpm. The torque of the rotation gear is 148 kNm. Digging depth 7.70 m 600 mm wide tracks with 2 track covers on each side with hydraulic tensioner. Driven by two multi-piston engines with two speed settings. Maximum thrust force 329 kN. Central lubrication system Hydraulic installation for the hammer Equipment: Excavator bucket with teeth with a capacity of 2.85 m3 Miller type hydraulic quick coupler Hydraulic line for a hydraulic hammer Hydraulic line for quick coupler 2700 camera system Central lubrication system LED lighting HRV valve Light rooster Air conditioning Factory GPS system monitoring fuel consumption, machine operating parameters, e-GlobalLaat meer zien
