INFORMATIE

Productgroep
Rupsgraafmachines
Merk / model

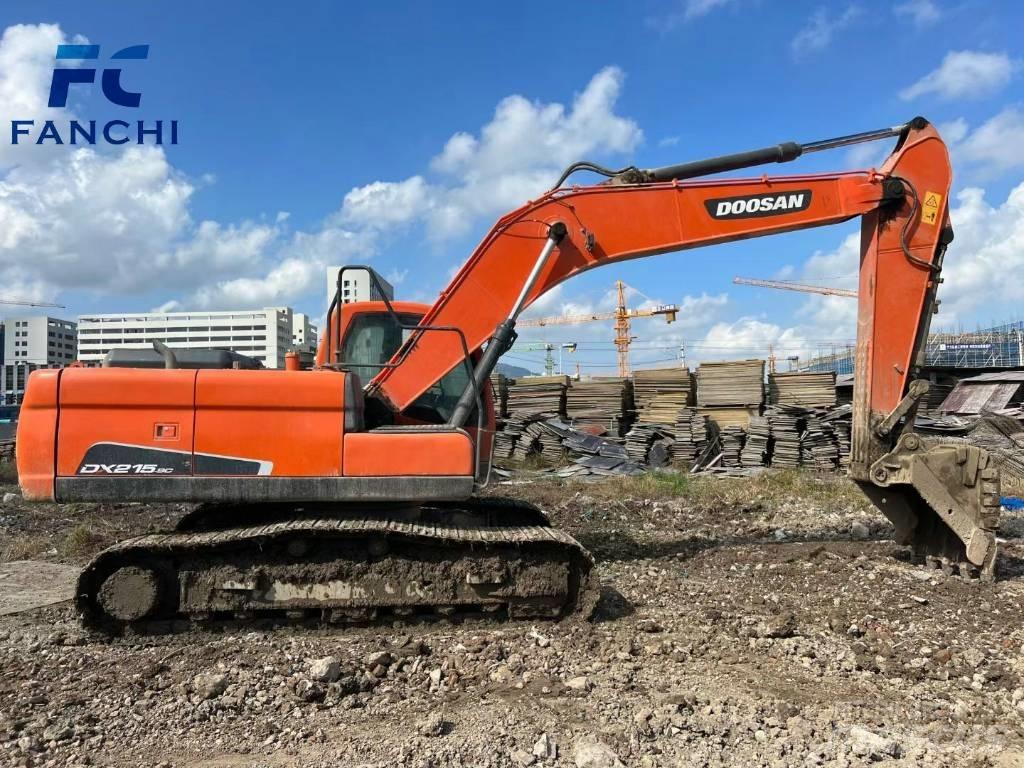

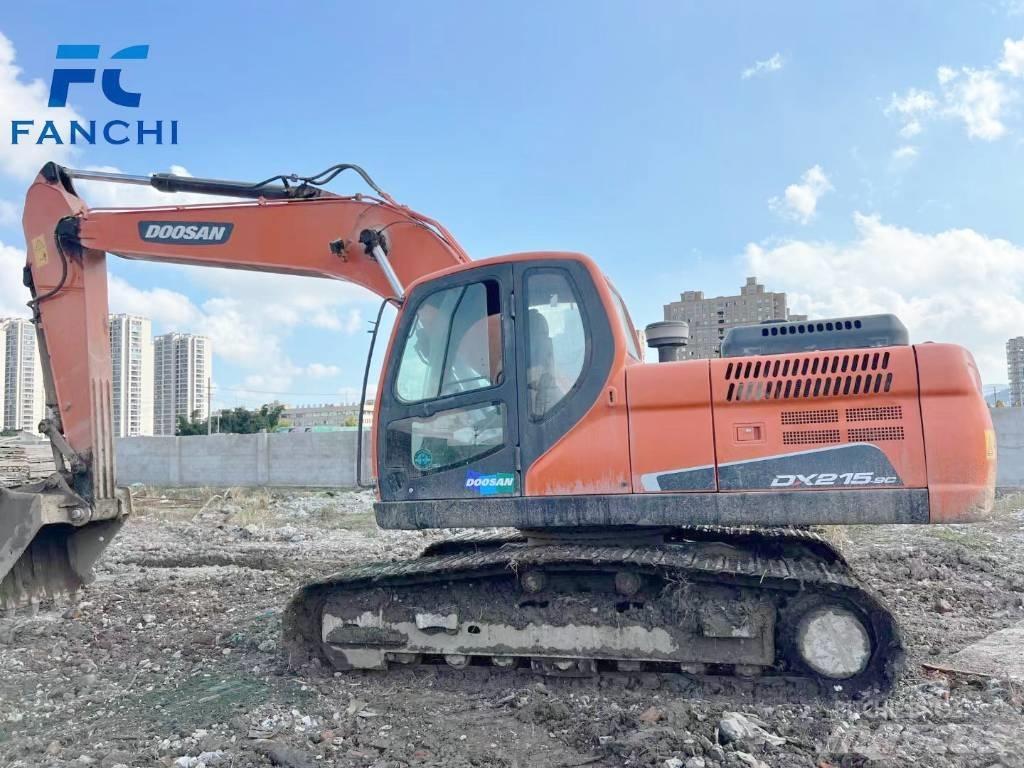

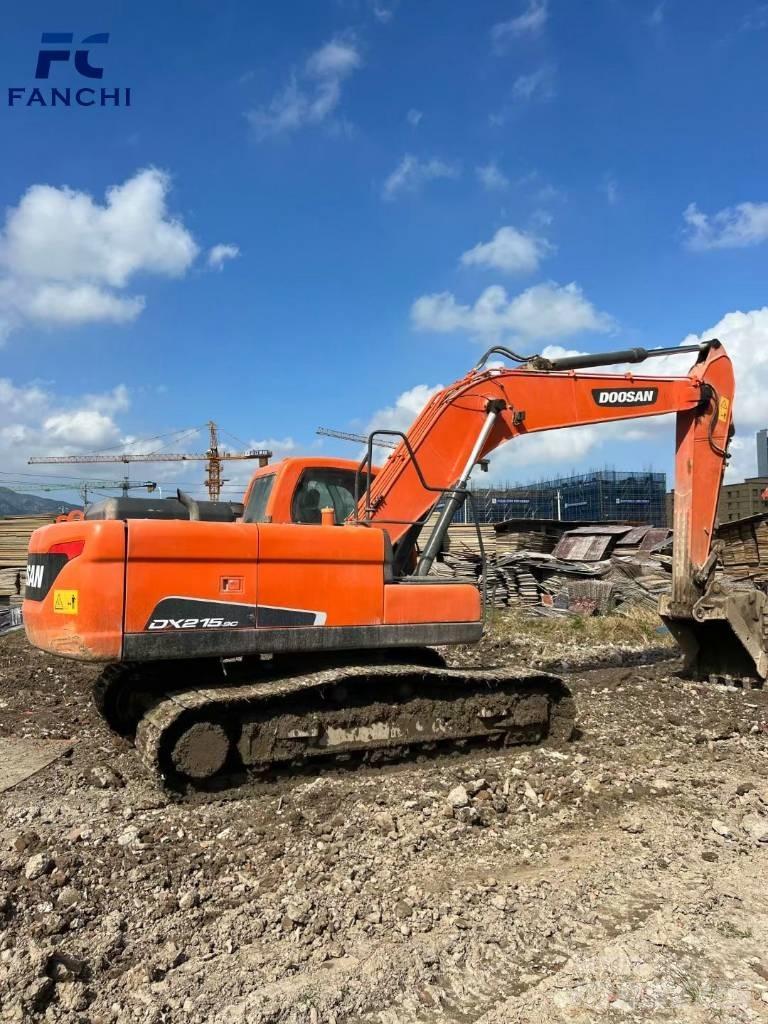

Doosan DX 215LC
Bouwjaar
2021
Aantal gebruiksuren
980 h
Land
China
Algemene score
1
2
3
4
5
Mascus ID
2CE5D732

PRIJZEN

Valuta kiezen

DETAILS

Aantal vorige eigenaren
1
Staat van het onderstel
good
Totaalgewicht GVW
21.500 kg
Motor vermogen
128 kW (174 pk)
Motorfabrikant
Korea
Inhoud graafbak
0,92 m3
Rupsbreedte
600 mm
Afmetingen (LxBxH)
9.498mm 2.990mm 3.174mm m
Originele kleur
orange
Voorwaarden info/Garantie
good
Land van productie
Zuid-Korea
Leveringsvoorwaarden
FOB, EXW
Certificaten
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Toebehoren
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Accessoires
Hamer/sorteer functie
Slangbreukbeveiliging hefcilinder
Slangbreukbeveiliging knikcilinder
Kabelkast
Laat meer zien
Overige informatie
The following are some common parameters of the Doosan DX215 excavator: 1. **Operating Weight**: 19,900kg 2. **Bucket Capacity**: 0.92m³ 3. **Engine Model**: DOOSAN DL06 4. **Rated Power**: 127.9kW/1,800rpm 5. **Slewing Speed**: 10.4rpm 6. **Travel Speed**: 5.2/2.8km/h 7. **Gradeability**: 70% 8. **Maximum Flow of Main Pump**: 2×210.6L/min 9. **Bucket Digging Force**: 13.9ton 10. **Arm Digging Force**: 10.3ton 11. **Maximum Digging Radius**: 9,400mm 12. **Maximum Digging Depth**: 6,111mm 13. **Maximum Digging Height**: 9,348mm 14. **Minimum Swing Radius**: 3,560mm 15. **Total Transport Length**: 9,498mm 16. **Total Transport Width**: 2,990mm 17. **Total Transport Height**: 3,174mm 18. **Track Center Distance**: 3,270mm 19. **Track Gauge**: 2,390mm 20. **Track Shoe Width**: 600mmLaat meer zien

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 China
