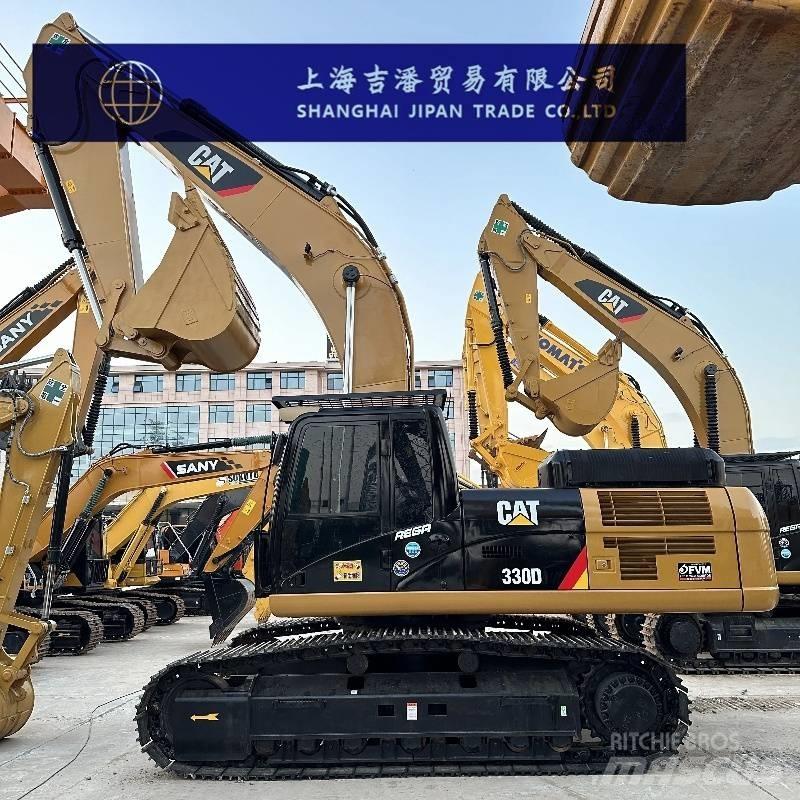

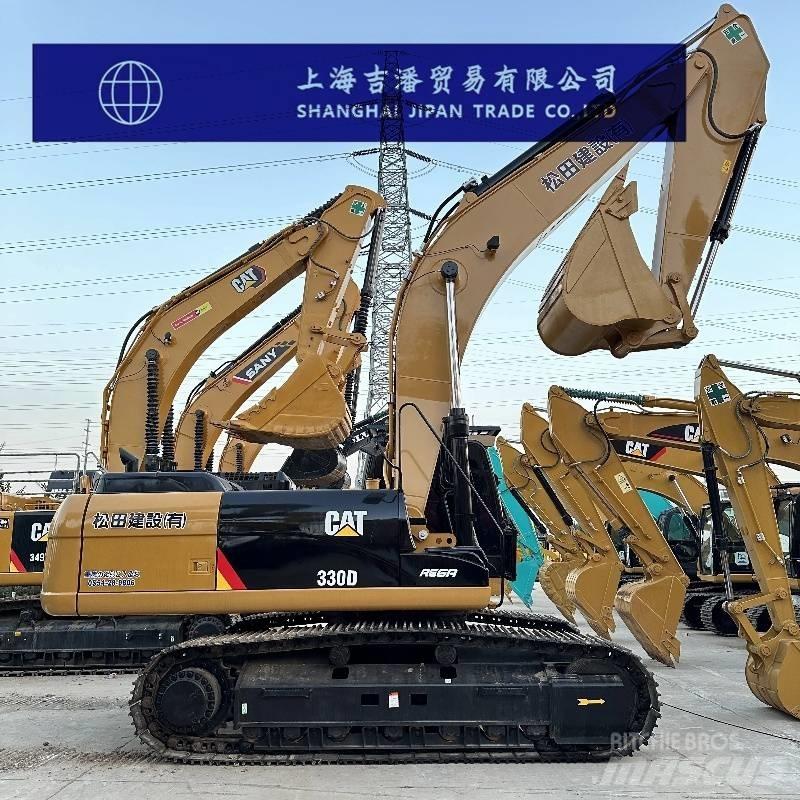

CAT 330 D

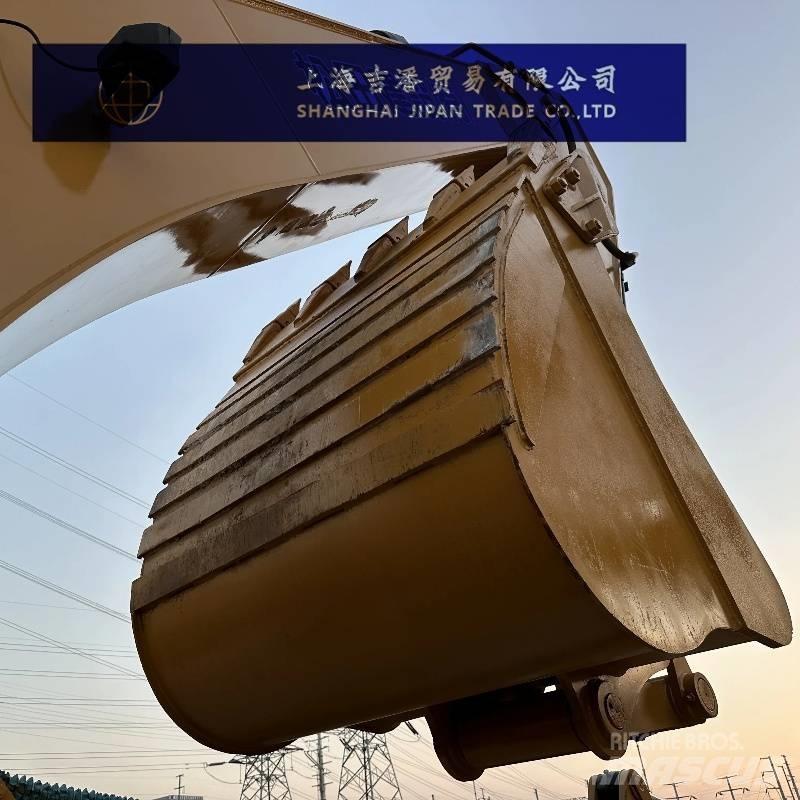

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

规格 动力传统动力 厂商合资/进口 铲斗反铲 吨位(吨)30 整机工作重量(kg)31100 铲斗容量(m³)1.8 性能 回转速度(rpm)11.5 回转扭矩(Nm)110k 铲斗挖掘力(kN)179 斗杆挖掘力(kN)126 动力系统 发动机型号Cat® C7.1 额定功率(kw/rpm)225/2000 排量(L)7.01 缸径×行程(mm)105*135 液压系统 主泵最大流量(l/min)560 工作液压油路(Mpa)35 行走液压回路(Mpa)35 回转液压回路(Mpa )29.8 油类容量 燃油箱(L)474 液压油箱(L)147 液压系统(L)310 发动机油更换量(L)25 冷却液(L )25 主体尺寸 运输总长度(mm)10420 运输总宽度(mm)3190/3290/3390 运输总高度(mm)3060 履带板宽度(mm)600/700/800 履带轨距(mm)2590 最小离地间隙(mm )490 支重轮中心间距(mm)3990 后端回转半径(mm )3130 作业范围 最大挖掘半径(mm)10690 最大挖掘深度(mm)7250 最大挖掘高度(mm)10000 最大卸载高度(mm)6940 最大垂直挖掘深度(mm)5790
