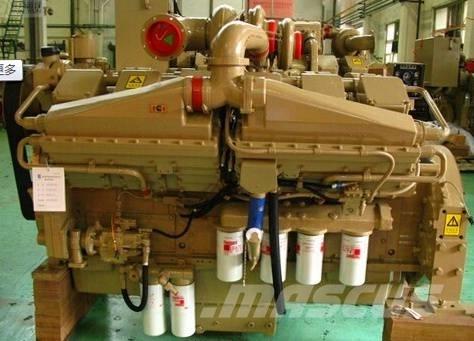

Cummins KTA38-M1

Cummins KTA38-M1-1000 Marine Propulsion Diesel Engine General Information of Cummins KTA38-M1-1000 Marine Propulsion Diesel Engine Engine Model KTA38-M1-1000 Engine Type 12 Cylinders in Line Displacement 38 L Bore*Stroke(mm) 159 * 159 CPL Number 2163 Net Weight (Engine only) 4218 Kg Overall Diemension(L*W*H) 2003mm*1362mm*1661mm Technical Specification of Cummins KTA38-M1-1000 Marine Propulsion Diesel Engine Marine Certification CCS/IMO Aspiration Turbocharged & Water-Air Inter-Cooled Fuel System PT Pump Electrical System(Starter Motor/Alternator) 12V/24V Rated HP Production Tolerance ±2% Fuel Rail pressure 1047 Performance Data of Cummins KTA38-M1-1000 Marine Propulsion Diesel Engine Rated Power/Speed 746 kW/1000HP @ 1800rpm Standby Power/Speed 820 kW/1110HP @ 1800rpm Fuel Consumption @ Rated Power 220g/Kw.h Fuel Consumption @ Standby Power 216g/Kw.h Idel Speed 725~775 rpm
