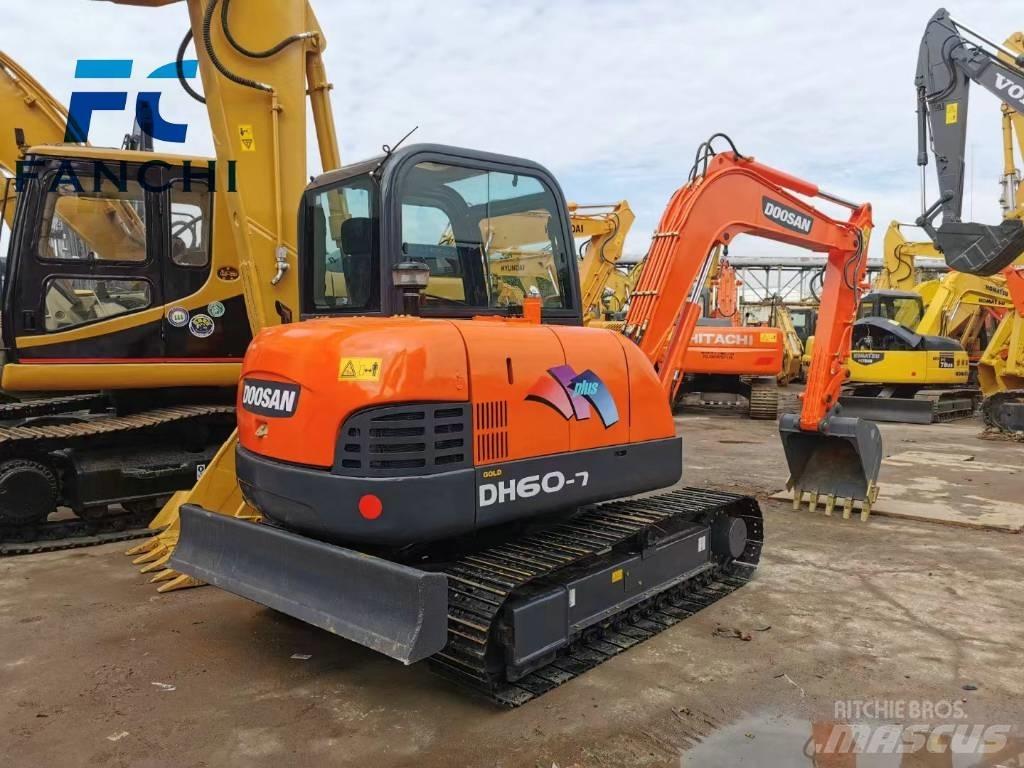

Doosan DH 60

Prijs excl. BTW

Images9
Doosan DH 60 Minigraafmachines < 7t
Doosan DH 60 Minigraafmachines < 7t
Doosan DH 60 Minigraafmachines < 7t
FavoriteFavoriet
shareDelen
Save searchZoekopdrachten bewaren
Afdrukken

INFORMATIE

Productgroep
Minigraafmachines < 7t
Merk / model
Doosan DH 60
Bouwjaar
2023
Aantal gebruiksuren
600 h
Land
China
Algemene score
1
2
3
4
5
Mascus ID
86AB9175

PRIJZEN

Valuta kiezen

DETAILS

Aantal vorige eigenaren
1
Staat van het onderstel
good
Totaalgewicht GVW
6.000 kg
Rupsbreedte
400 mm
Inhoud graafbak
2 m3
Afmetingen (LxBxH)
585018802.575 m
Originele kleur
YELLOW
Lengte lepelsteel
1.990 mm

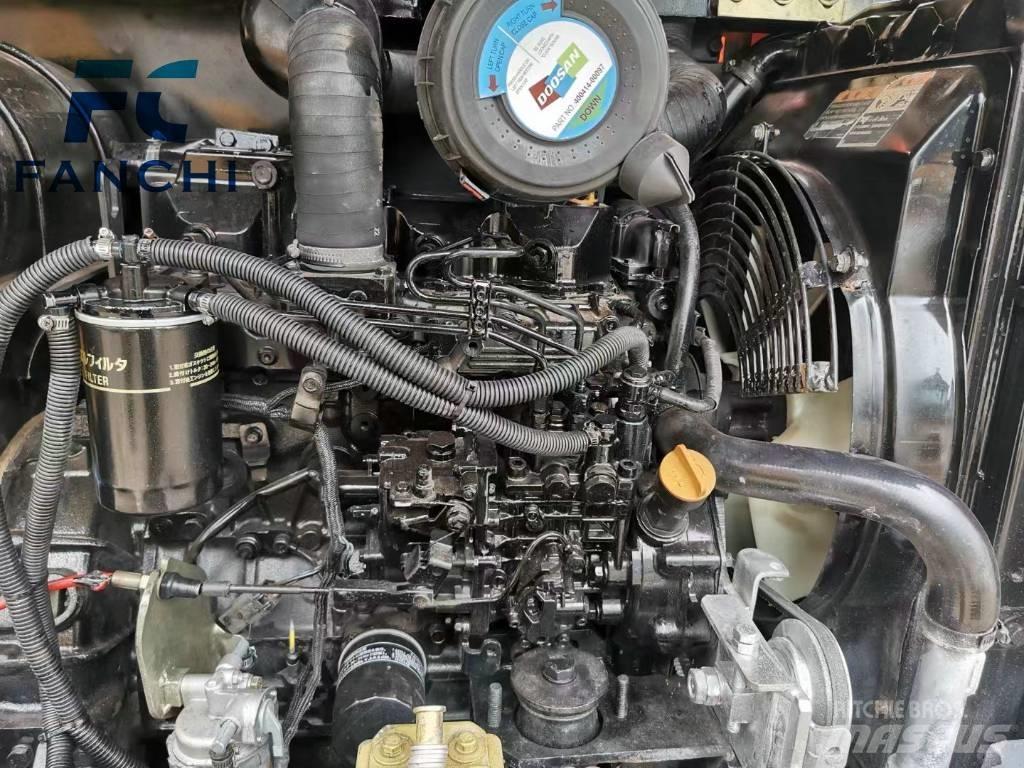

Motor
洋马 4TNV94L
Motor vermogen
38,1 kW (51,8 pk)
Motorfabrikant
JAPAN
Voorwaarden info/Garantie
good
Land van productie
Japan
Leveringsvoorwaarden
FOB, CIF, EXW
Certificaten
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Toebehoren
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Accessoires
Hydraulische snelwissel
Hamer/sorteer functie
Kabelkast
GPS-systeem
Laat meer zien
Overige informatie
Overall Machine Parameters: - Total operating weight of the whole machine: 5550 kg - Bucket capacity: 0.09 - 0.2 m³ - Boom length: 3000 mm - Arm length: 1600 mm - Total transport length: 5850 mm - Total transport width: 1880 mm - Total transport height: 2575 mm - Total height of the cab: 2575 mm - Width of the upper carriage: 1885 mm - Track ground contact length: 1990 mm - Total track length: 2540 mm - Track shoe width: 400 mm - Total track width: 1880 mm - Track gauge: 1480 mm - Minimum ground clearance: 350 mm - Rear swing radius: 1650 mm Performance Parameters: - Bucket digging force: 37.7 kN - Arm digging force: 28.4 kN - Maximum digging radius: 6150 mm - Maximum digging depth: 3820 mm - Maximum digging height: 5760 mm - Maximum unloading height: 4030 mm Engine Parameters: - Engine model: Yanmar 4TNV94L - Rated power: 38.1 kW/2200 rpm - Number of cylinders: 4 - Cooling method: Water cooling - Working mode: Air-to-air intercooling Hydraulic System Parameters: - Main pump type: Variable axial piston pump × 2 - Maximum flow rate of the main pump: 55×2 L/min - Working hydraulic circuit pressure: 20.6 MPa - Travel hydraulic circuit pressure: 20.6 MPa - Swing hydraulic circuit pressure: 21.6 MPa - Flow rate of the pilot pump: 9.9 L/minLaat meer zien

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 China
