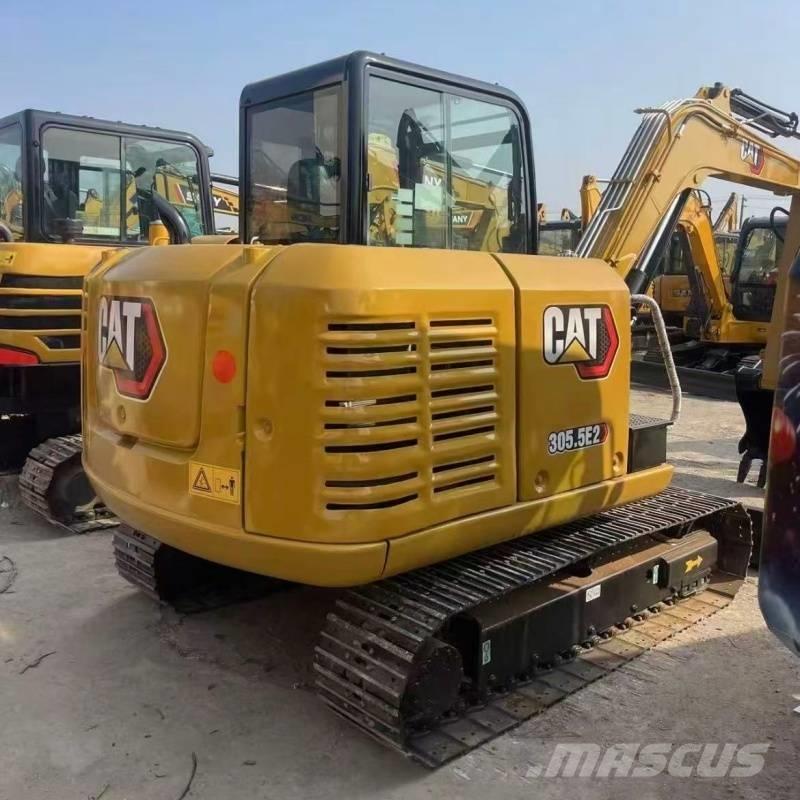

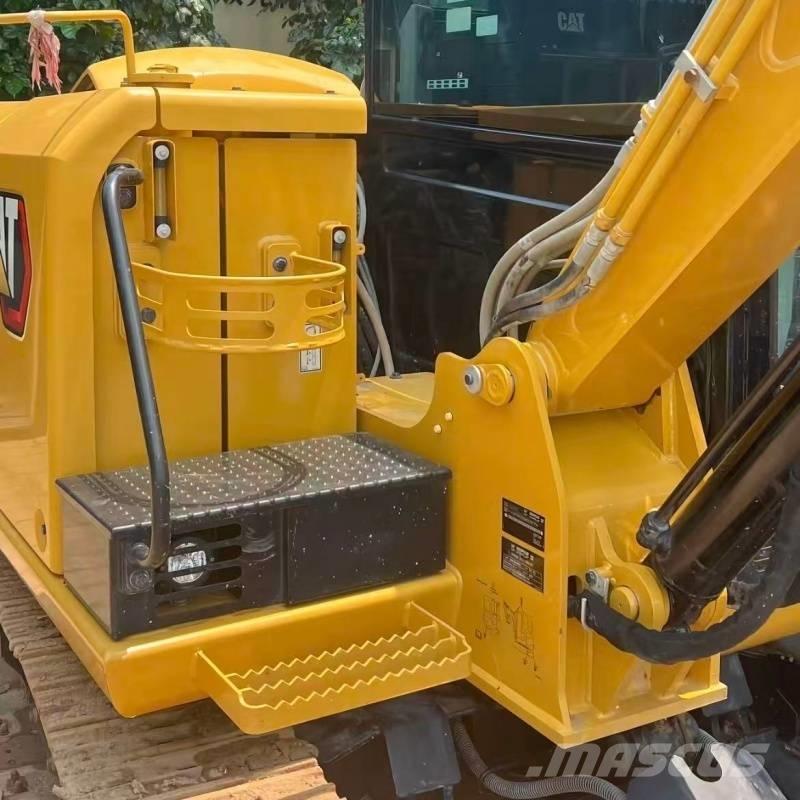

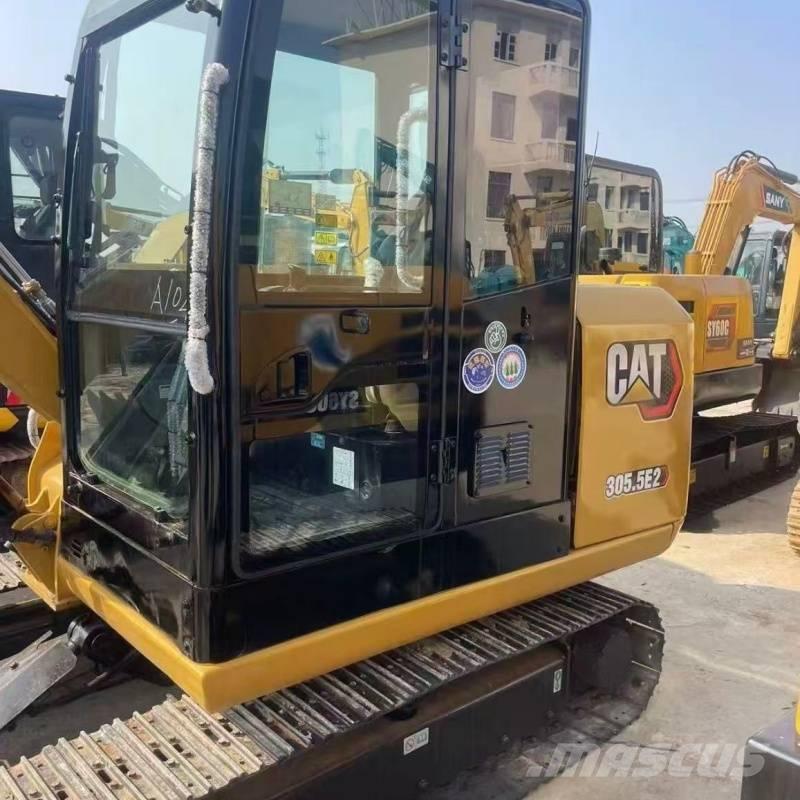

CAT 305.5 E
Prijs excl. BTW
6
Favoriet
Delen
Zoekopdrachten bewarenAfdrukken
INFORMATIE
Productgroep
Minigraafmachines < 7t
Merk / model
CAT 305.5 E
Bouwjaar
2023
Aantal gebruiksuren
854 h
Land
China
Algemene score
1
2
3
4
5
Mascus ID
9C2859E2
PRIJZEN
Valuta kiezen
DETAILS
Type
Diesel
Laatste inspectie
2025-11-04
Aantal vorige eigenaren
1
Staat van het onderstel
98%
Totaalgewicht GVW
5.400 kg
Emissieklasse
Fase V
Rupsbreedte
400 mm
Inhoud graafbak
0,22 m3
Afmetingen (LxBxH)
5765 x 1950 x 2540 mm
Originele kleur
original
Motor
original
Motor vermogen
31,4 kW (42,7 pk)
Motorfabrikant
original
Voorwaarden info/Garantie
1 year
Leveringsvoorwaarden
FCA, FOB, CIF, EXW
Certificaten
EPA, CE
Toebehoren
Basic Information
Engine Model: Cat C2.4 DI
Net Power: 31.1kW (41.7hp)
Operating Weight: 5400kg
Bucket Capacity: 0.22m³
Dimension Parameters
Overall Transport Length: 5765mm
Overall Transport Width: 1950mm
Overall Transport Height: 2540mm
Total Track Length: 2440mm
Track Shoe Width: 400mm
Track Gauge: 1550mm
Counterweight Ground Clearance: 628mm
Rear Swing Radius: 1580mm
Performance Parameters
Bucket Digging Force: 35kN
Stick Digging Force: 27.2kN
Travel Speed: 2.8km/h (low), 4.3km/h (high)
Swing Speed: 10.5r/min
Gradeability: 25°
Maximum Digging Depth: 3720mm
Maximum Digging Height: 5460mm
Maximum Dump Height: 3835mm
Fluid Capacities
Fuel Tank: 78L
Hydraulic Tank: 58L
Hydraulic System: 85L
Engine Oil Change Capacity: 9.5L
Cooling System: 9.8L
Accessoires
Airconditioning
Puinriek
Stuurknuppel
Standaard graafbak
Overige informatie
Basic Information
Engine Model: Cat C2.4 DI
Net Power: 31.1kW (41.7hp)
Operating Weight: 5400kg
Bucket Capacity: 0.22m³
Dimension Parameters
Overall Transport Length: 5765mm
Overall Transport Width: 1950mm
Overall Transport Height: 2540mm
Total Track Length: 2440mm
Track Shoe Width: 400mm
Track Gauge: 1550mm
Counterweight Ground Clearance: 628mm
Rear Swing Radius: 1580mm
Performance Parameters
Bucket Digging Force: 35kN
Stick Digging Force: 27.2kN
Travel Speed: 2.8km/h (low), 4.3km/h (high)
Swing Speed: 10.5r/min
Gradeability: 25°
Maximum Digging Depth: 3720mm
Maximum Digging Height: 5460mm
Maximum Dump Height: 3835mm
Fluid Capacities
Fuel Tank: 78L
Hydraulic Tank: 58L
Hydraulic System: 85L
Engine Oil Change Capacity: 9.5L
Cooling System: 9.8L
