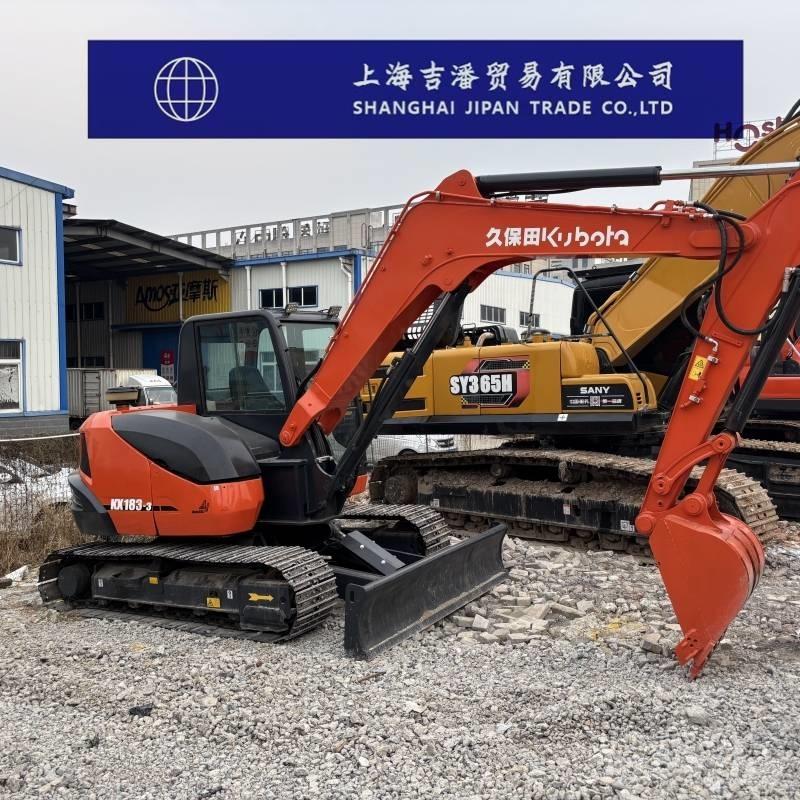

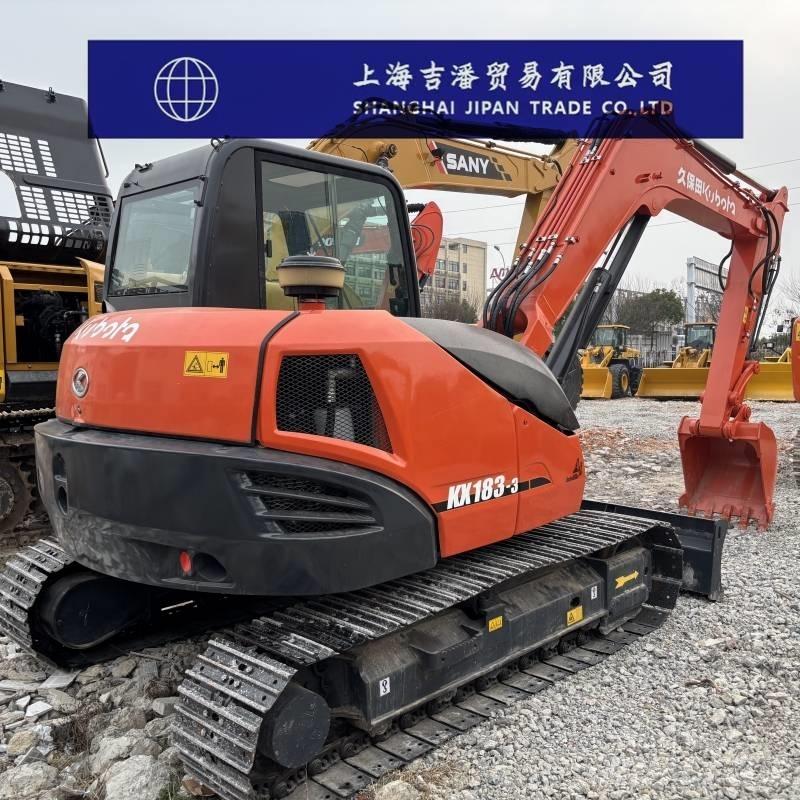

Kubota KX 183

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification parameters The overall working weight of the machine is 8,350 kg. Bucket capacity: 0.31 cubic meters. Total transportation length: 6450mm. Total transportation width: 2200mm. Total transportation height: 2530mm. Total track length: 2840mm. Track plate width: 450mm (steel track). Track gauge: 1750mm. Minimum ground clearance: 364mm. The minimum turning radius of the front working device is 2410mm. Rear end turning radius: 1460mm. Job performance parameters Rotational speed: 9.5rpm. Walking speed: 2.7/4.9Km/h. Climbing ability: 58%. Bucket digging force: 65.2kN. Maximum excavation radius: 7010mm. Maximum excavation radius of the shutdown face: 6850mm. Maximum excavation depth: 4290mm. Maximum excavation height: 7040mm. Maximum unloading height: 4980mm. Maximum vertical excavation depth: 3490mm. The width × height of the bulldozer board is 2200×500mm. Lifting or deepening with a bulldozer shovel: 470/530mm. Power system parameters Engine model: Kubota original. Rated power: 47.8kW/2200rpm. Total displacement: 3.331L. Cooling method: Water cooling. Parameters of the hydraulic system Main pump type: 2 variable pumps + 1 gear pump. Walking hydraulic motor type: Piston hydraulic motor: 2F. Rotary hydraulic motor type: Piston hydraulic motor. Oil capacity parameters Fuel tank: 115 liters
