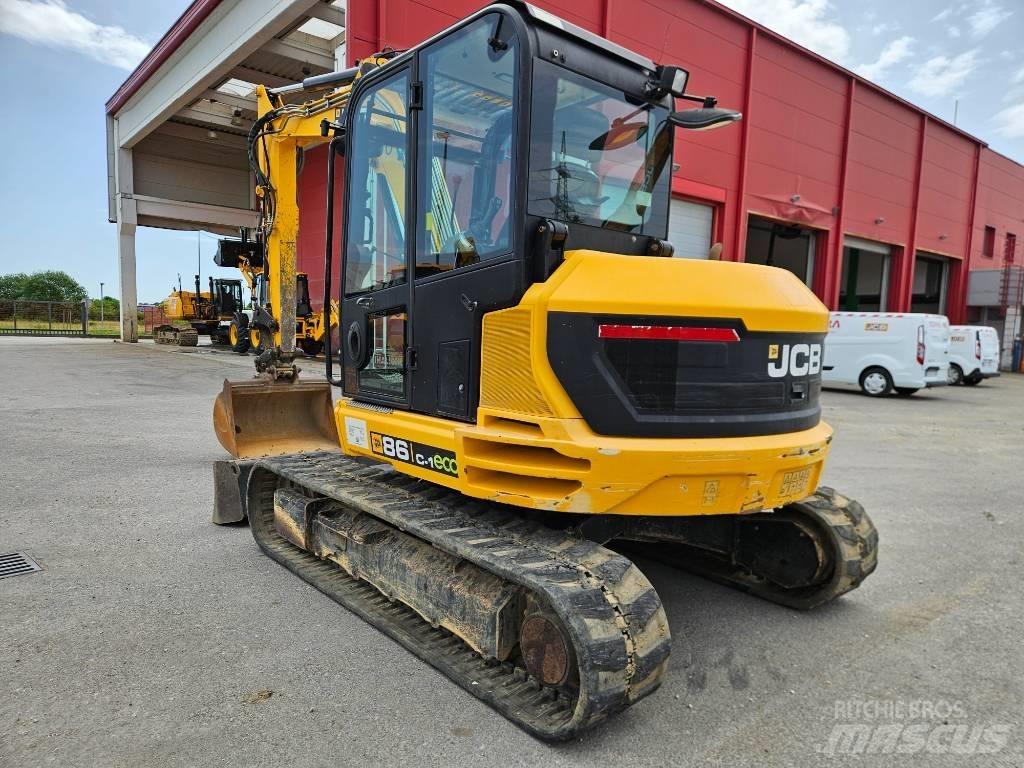

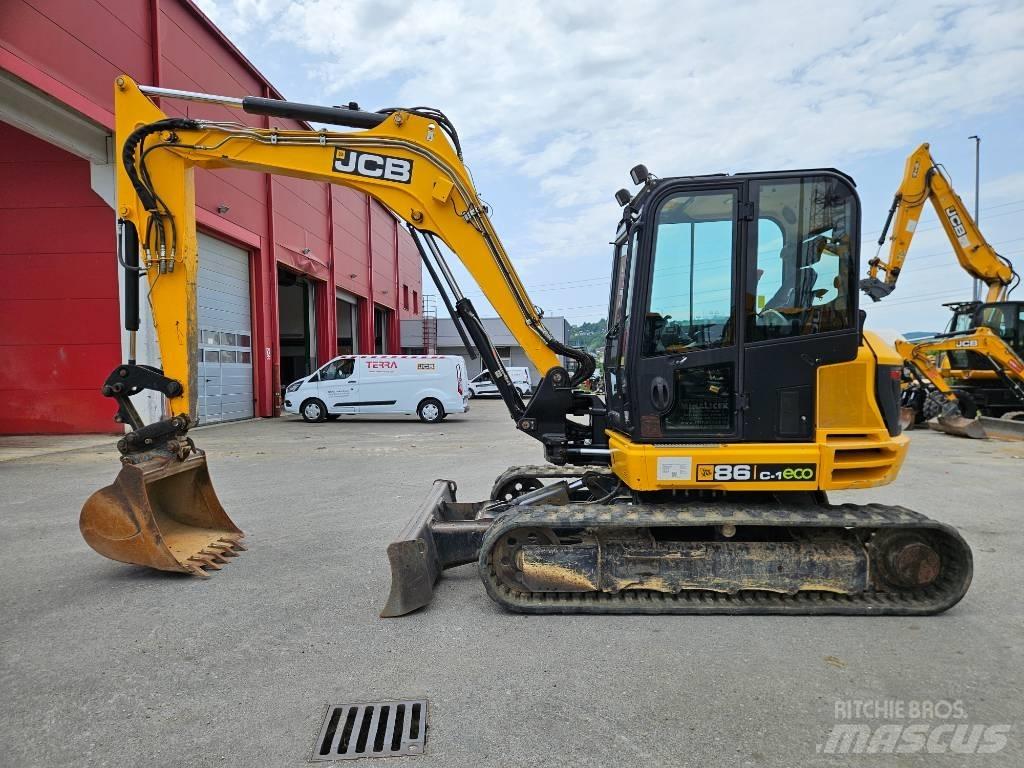

JCB 86 C-1 eco

Model: JCB 86 C-1 Year of Manufacture: 2017 Operating Hours: 8,520 Included attachments: Mechanical quick coupler for tool exchange 1060 mm digging bucket Additional machine specifications: Engine: Engine Model: KDI 2504 TCR – Stage IIIB / Tier 4 Final Fuel Type: Diesel Cooling System: Water-cooled Engine Power: 48 kW (65 HP) at 2200 rpm Torque: 300 Nm at 1500 rpm Displacement: 2500 cm³ Maximum Gradeability: 35° Electric Starter Motor: 2 kW Battery: 12V / 750 A Alternator: 12V / 100 A Hydraulic System: Rated Flow at 2200 rpm: 158.4 l/min Main Line Pressure (digging/driving): 280 bar Swing Pressure: 226 bar Auxiliary Hydraulic Flow – Low: 15 l/min (190 bar) Auxiliary Hydraulic Flow – High: 100 l/min (190 bar) Undercarriage: Number of Top Rollers: 1 Number of Bottom Rollers: 5 Track Width: 450 mm Ground Clearance (undercarriage): 345 mm Track Tensioning: Grease-adjusted Travel Speed – Low: 2.6 km/h Travel Speed – High: 5.0 km/h Tractive Effort: 65 kN Weights: Operating Weight (with 450 mm rubber tracks): 8649 kg Transport Weight: 8525 kg Dimensions: Idler to Sprocket Distance: 2325 mm Track Length on Ground: 2325 mm Total Undercarriage Length (rubber): 2950 mm Clearance Under Swing Frame: 793 mm Rear Tail Swing Radius: 1490 mm Upper Structure Width: 2187 mm Height to Cab Top: 2706 mm Ground Clearance: 350 mm Track Frame Width: 1850 mm Overall Width with 450 mm Tracks: 2300 mm Overall Length with Standard Boom: 6435 mm Transport Height: 2706 mm Track Height: 650 mm Clearance Under Counterweight: 762 mm Model: JCB 86 C-1 Godina proizvodnje: 2017 Broj radnih sati: 8520 Od priključaka s njime dolazi: - Mehanička brza spojka za izmjenu radnih alata - Kopačka žlica 1060 mm Ostale specifikacije stroja: Motor: Model: KDI 2504 TCR – Stage IIIB / Tier 4 Final Gorivo: Dizel Hlađenje: Vodeno Snaga motora: 48 kW (65 KS) pri 2200 o/min Okretni moment: 300 Nm pri 1500 o/min Obujam: 2500 cm³ Maks. nagib (penjanje): 35° Elektromotor startera: 2 kW Baterija: 12V / 750 A Alternator: 12V / 100 A Hidraulički sustav: Nazivni protok pri 2200 o/min: 158.4 l/min Tlak glavne linije (iskop/vožnja): 280 bar Tlak za zakretanje: 226 bar Pomoćni hidraulički protok – niski: 15 l/min (190 bar) Pomoćni hidraulički protok – visoki: 100 l/min (190 bar) Podvozje: Broj gornjih valjaka: 1 Broj donjih valjaka: 5 Širina gusjenica: 450 mm Prolaz ispod podvozja: 345 mm Zatezanje gusjenica: mast Brzina vožnje – spora: 2.6 km/h Brzina vožnje – brza: 5.0 km/h Vučno naprezanje: 65 kN Težine: Radna težina (450 mm gumene gusjenice): 8649 kg Transportna težina: 8525 kg Dimenzije: Razmak između kotača lančanika: 2325 mm Duljina gusjenice na tlu: 2325 mm Ukupna duljina podvozja (guma): 2950 mm Prolaz ispod rotacione konzole: 793 mm Polumjer zakretanja stražnjeg dijela: 1490 mm Širina gornje konstrukcije: 2187 mm Visina do vrha kabine: 2706 mm Prolaz ispod stroja: 350 mm Širina gusjenica: 1850 mm Ukupna širina s 450 mm gusjenicama: 2300 mm Ukupna duljina s osnovnim krakom: 6435 mm Visina u transportu: 2706 mm Visina gusjenice: 650 mm Prolaz ispod protuutega: 762 mm
