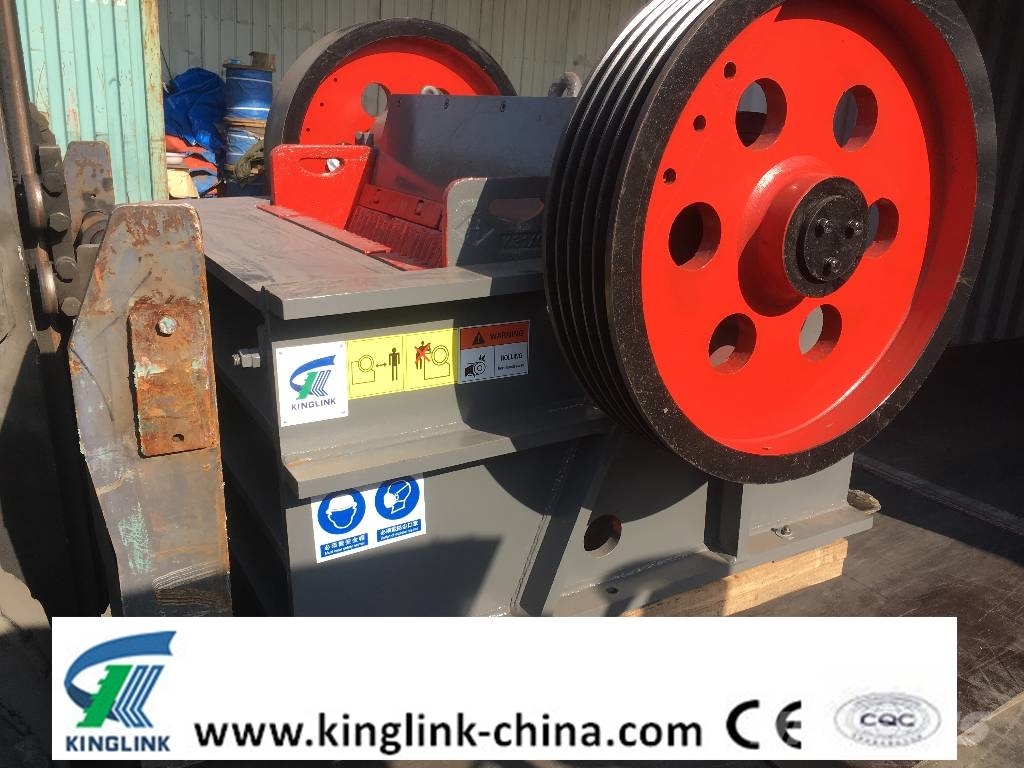

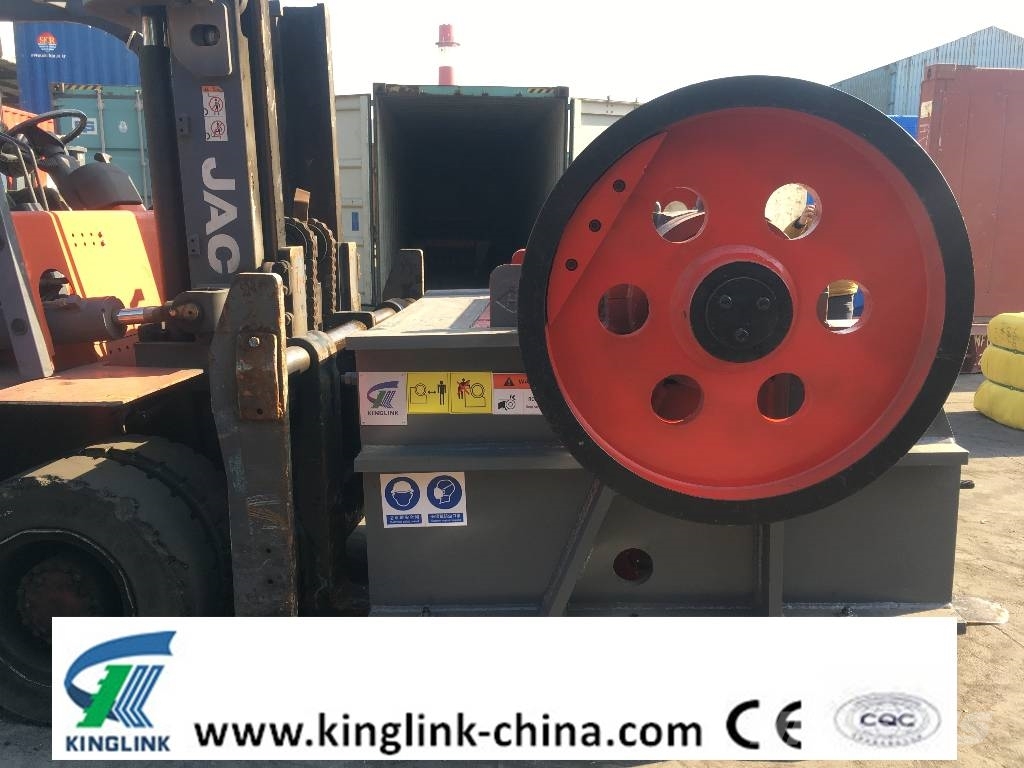

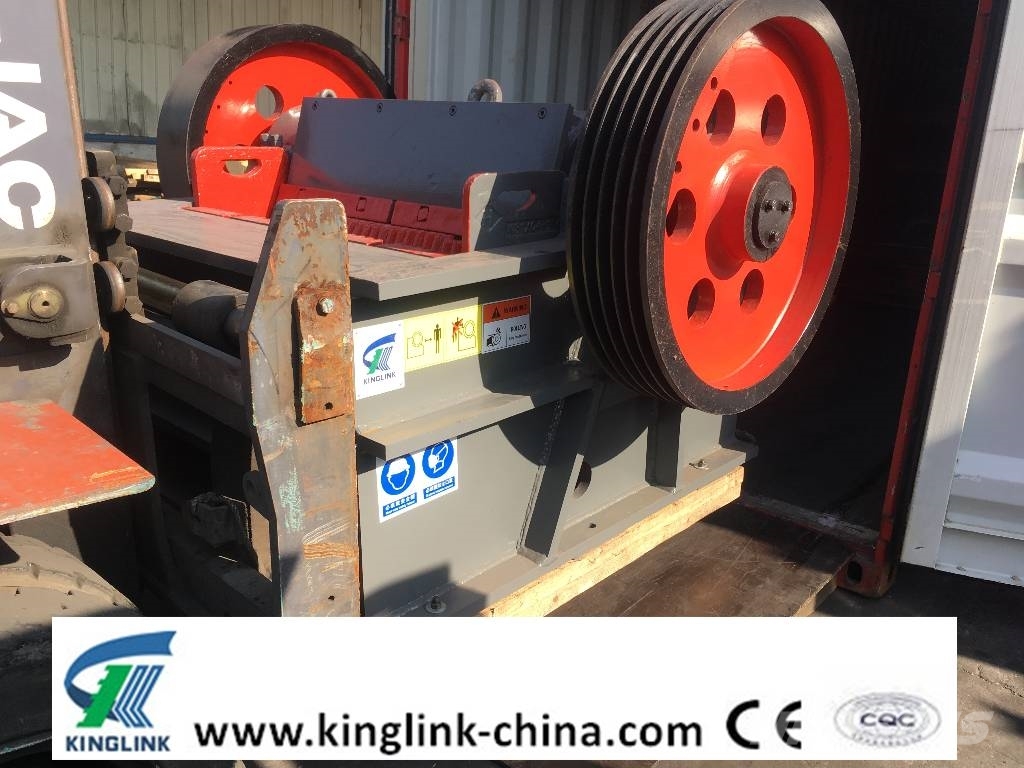

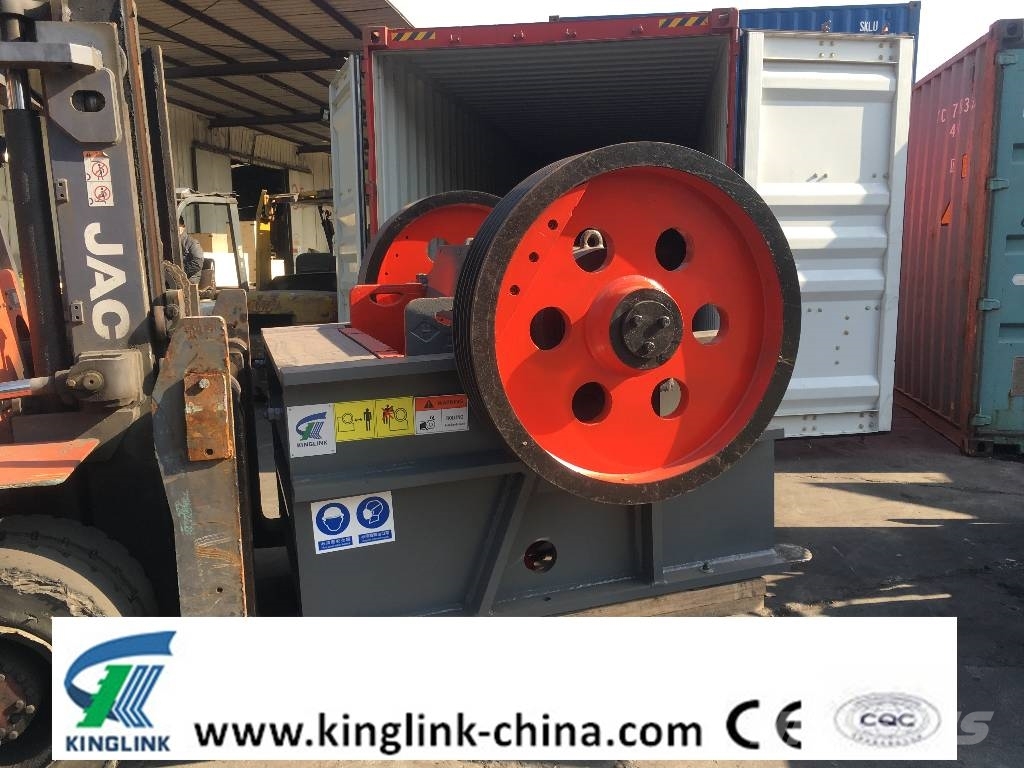

Kinglink Jaw Crusher PEX-250x1200

Prijs excl. BTW

Compnay LOGO
Images4
Kinglink Jaw Crusher PEX-250x1200 Vergruizers
Kinglink Jaw Crusher PEX-250x1200 Vergruizers
Kinglink Jaw Crusher PEX-250x1200 Vergruizers
FavoriteFavoriet
shareDelen
Save searchZoekopdrachten bewaren
Afdrukken

INFORMATIE

Productgroep
Vergruizers
Merk / model
Kinglink Jaw Crusher PEX-250x1200
Bouwjaar
2018
Status
Nieuw/ongebruikt
Plaats
Shanghai
Land
China
Mascus ID
195720FF

PRIJZEN

Valuta kiezen

DETAILS

Totaalgewicht GVW
7.700 kg
Crusher operation
secondair
Breekinstallatietype
Kaakbrekers
productie capaciteit ton per uur
20-78
Feed size
0-210
Land van productie
China
Leveringsvoorwaarden
FOB, CFR, CIF, EXW
Certificaten
CE
Overige informatie
KingLink PEX-250x1200 Jaw Crusher Model: PEX-250x1200 Feed Opening: 250x1200 mm (10x48") Max. Feed Size: 210 mm Capacity: 20-78 t/h Motor Power: 37 kw Eccentric Shaft Rotation Speed: 330 r/min Discharging Range Size: 25-60 mm Weight: 7.7 t Application Jaw crusher can reach the crushing ratio of 4-6 and the shape of final product is even. It is widely applied to crush high hardness, mid hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 320Mpa, that is, suitable for primary crush. Jaw crusher can be used in mining, metallurgical industry, construction, road and railway building, conversancy, chemistry, etc. Features: 1. Simple structure, easy maintenance; 2. Stable performance; 3. Even final particles and high crushing ratio. Operating Principle: When it works , motor drives the eccentric shaft rotation through the belt pulley to make the movable jaw close and leave the fixed jaw periodically,then the materials will be broken into small with queeze,rub,grind and multiple, so that the materials gradually fall until row out of the discharge opening. Features and values: 1. High reliability; 2. Both casting and welded frame construction; 3. Top crushing performance; 4. Wedge setting adjustment; 5. Fast and simple maintenance; 6. Easy and less costly to install; 7. Excellent total crushing economy; 8. Excellent suitability; 9. Highly versatile: ready and able to crush all your Stones in stationary or semi-mobile installations. Note: All the above information is subject to our final confirmation. If any demands, please contact me directly.Laat meer zien

Shanghai Kinglink Industry Co., Ltd.

Lane 123, Shenmei Road, Pudong New Area 201318 Shanghai Shanghai 上海 China
