Ozgul LW3 EU FIX

Prijs excl. BTW

Compnay LOGO
Images19

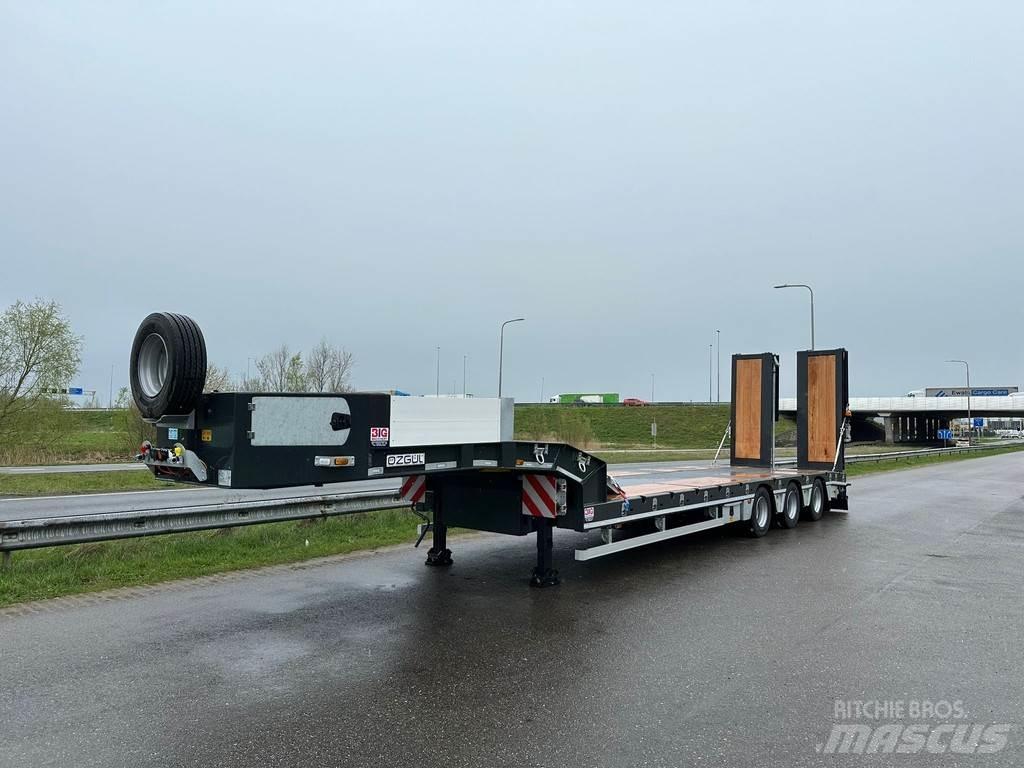

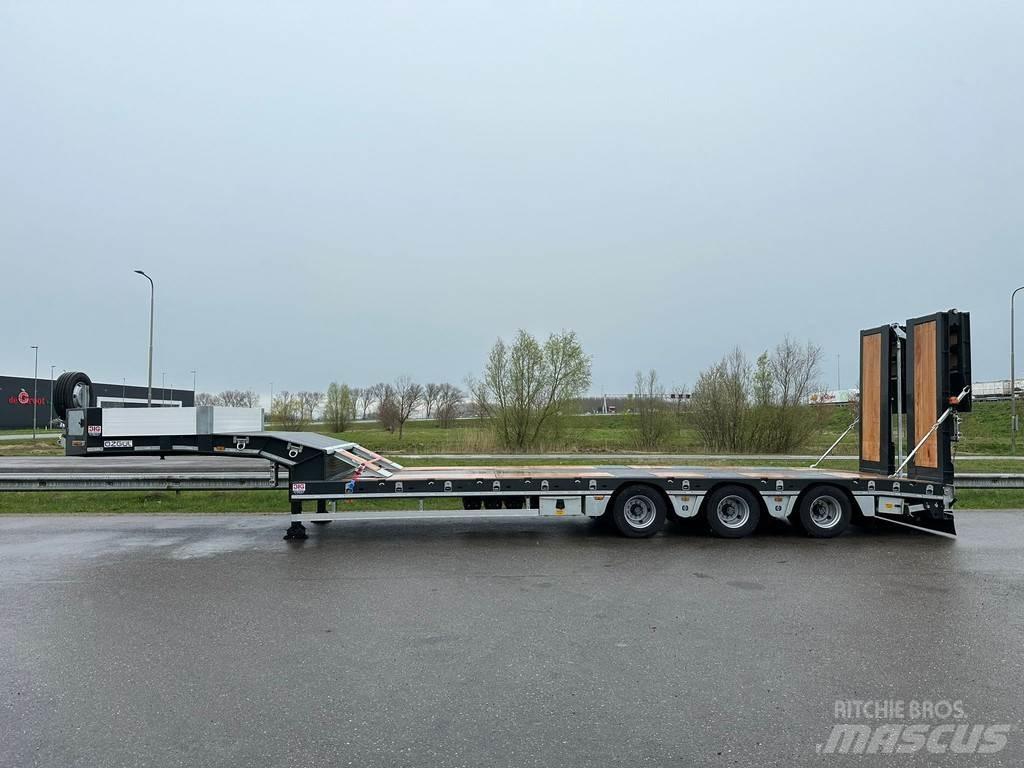

Ozgul LW3 EU FIX Diepladers
Ozgul LW3 EU FIX Diepladers
Ozgul LW3 EU FIX Diepladers
FavoriteFavoriet
shareDelen
Save searchZoekopdrachten bewaren
report adVerdachte advertentie melden

INFORMATIE

Productgroep
Diepladers
Merk / model
Ozgul LW3 EU FIX
Bouwjaar
2024
Extra opties
Nieuw/ongebruikt
Plaats
On Transport
Land
Nederland
Mascus ID
AFE1B1EE

PRIJZEN

Valuta kiezen

DETAILS

Jaar registratie
2024
Voorraad nummer
00032324
Fabrikant
OZGUL
Land van productie
Turkije
Toebehoren
EN: ABS, EBS, Lifting axle, Spare tyre NL: ABS, EBS, Liftas, Reserveband
Overige informatie
MASSES & DIMENSIONS Gross Vehicle Weight (kg) : 58.000 Loading Platform Length (mm) : 9.000 Weight of Axle Group (kg) : 36.000 Total Lenght (mm) : 13.550 Kingpin Capacity (kg) : 22.000 Total Width (mm) : 2.550 Curb Weight (kg) : 12.300 Loading Platform Height (mm) : 920 Pay Load (kg) : 45.700 Height of 5.th Wheel (mm) : 1.310 CONSTRUCTIONS Base Chassis Heavy duty and extra durability designed BOX type chassis All welded S355 steel chassis. Outer frame is UPE 240 profile. Welding (Chassis) : Automatic ARC submerged. Welding (Superstructure) : Automatic robot welding. Axle (Type) : Özkoç Trax or Osman Koç Turkish Brand Drum brakes 3 x 12 Ton axles Axle Lifting : 1st axle automatic Suspension (Type) : Air Suspension. Steering Axles : - King pin (Type) : 1 position with 1x coupling-pen 2” (EU approved) Çayırova Brand. Tires : 12+1 Units, 245 / 70 R 17.5 Fulda or Pirelli or Goodyear Brand. Rims : 12+1 Units, 6.75 x 17.5 steel rims. Jantas or Ako Brand. Landing Gear : Mechanical operated by one side, two speed. Gos Brand. Brake System : Wabco EBS (4S/3M) with RSS according to EC Directive with ADR Adaptation. Brake Chamber 1 axles with 2 units emergency brake chambers. 2 axle with 4 unit service brake chambers. Electric System 24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation SABA Brand. • 2 x Rear Stop Lights. - 4 x Side LED Lights. • 2 x White LED Lights - 2 x Front LED Lights • 2 x Registration Plate Lights - 2 x rotating Lights Floor Above tyres and edges of platform are covered chequered sheet and hard wood,the middle surface is covered by flat sheet steel. Rear Loading Ramps Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic function with cable push – button for remote control.Folding type rear ramps length 2500 mm +1500 mm width 900 mm,covered all steel.Rear ramps are sliding internal and external hydraulic. Short steel ramps behind of neck. Color : Upon Request Paint Application Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats of acrylic paint. TECHNICAL SPECIFICATIONS Accessories • 2 x 7 pcs of heavy duty lashing rings mounted on the outer frame mushroom type • 4 x Certificated Expray mud flaps. • 1 x Plastic water tank • 2 x Wheel chocks and holders • 2 x 7 Galvanized sides extensions brackets 250 mm + 250 mm • 2 x Side Protections, Aluminium • 1 x Tool box. • 1 x spare Wheel carrier with 1 tire(on the gooseneck) • 2 x Manual support Legs at the rear. • 2 x Reflective tape and reflector sign at the rear and sides. • 2 x Side extensions reflector • Steel front panel(height:400mm) • Aluminum side panels on gooseneck section(height:400mm) • 1 plaque places on rear ramps or bumper = Meer informatie = Ledig gewicht: 12.300 kg CE markering: ja COC beschikbaar: JaLaat meer zien
