Rinieri EB 1532 4

Prijs excl. BTW

Images5
Rinieri EB 1532 4 Voorladeraccessoires
Rinieri EB 1532 4 Voorladeraccessoires
Rinieri EB 1532 4 Voorladeraccessoires
FavoriteFavoriet
shareDelen
Save searchZoekopdrachten bewaren
Afdrukken

INFORMATIE

Productgroep
Voorladeraccessoires
Merk / model
Rinieri EB 1532 4
Bouwjaar
2015
Status
Demo
Plaats
Degeberga
Land
Zweden
Algemene score
1
2
3
4
5
Mascus ID
ED5802F0

PRIJZEN

Valuta kiezen

DETAILS

Voorraad nummer
6EB15324
Type accessoire
Hooivorken
Serienummer
28311
Gewicht
500 kg
Voorwaarden info/Garantie
Ingen
Land van productie
Italië
Overige informatie

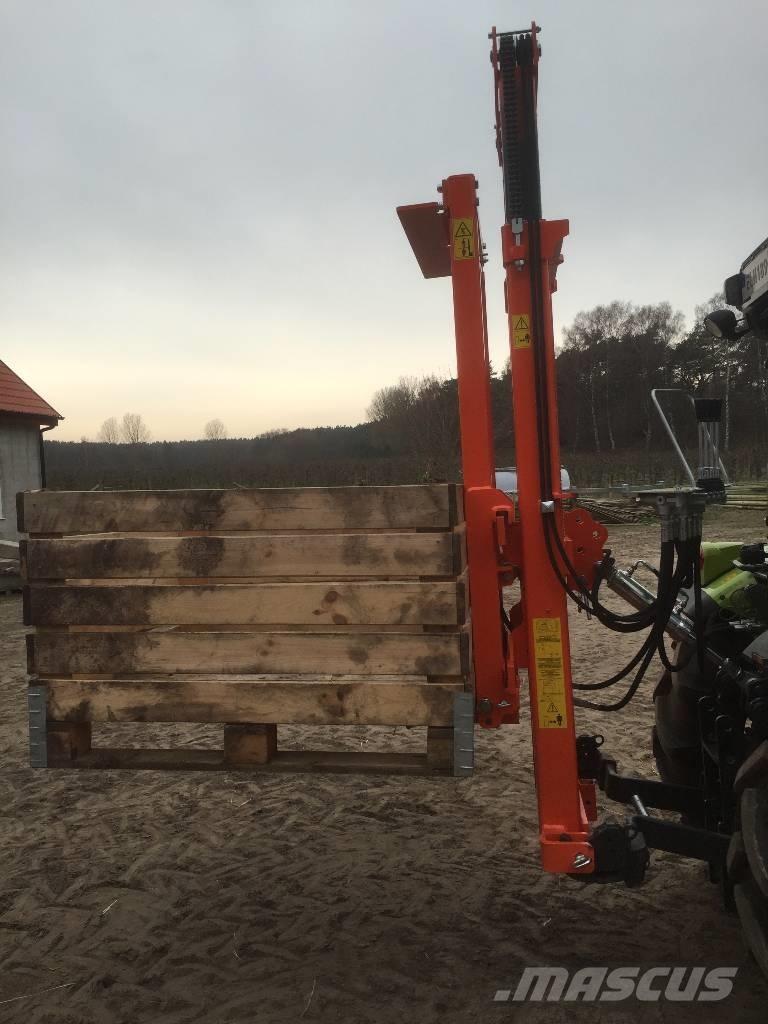

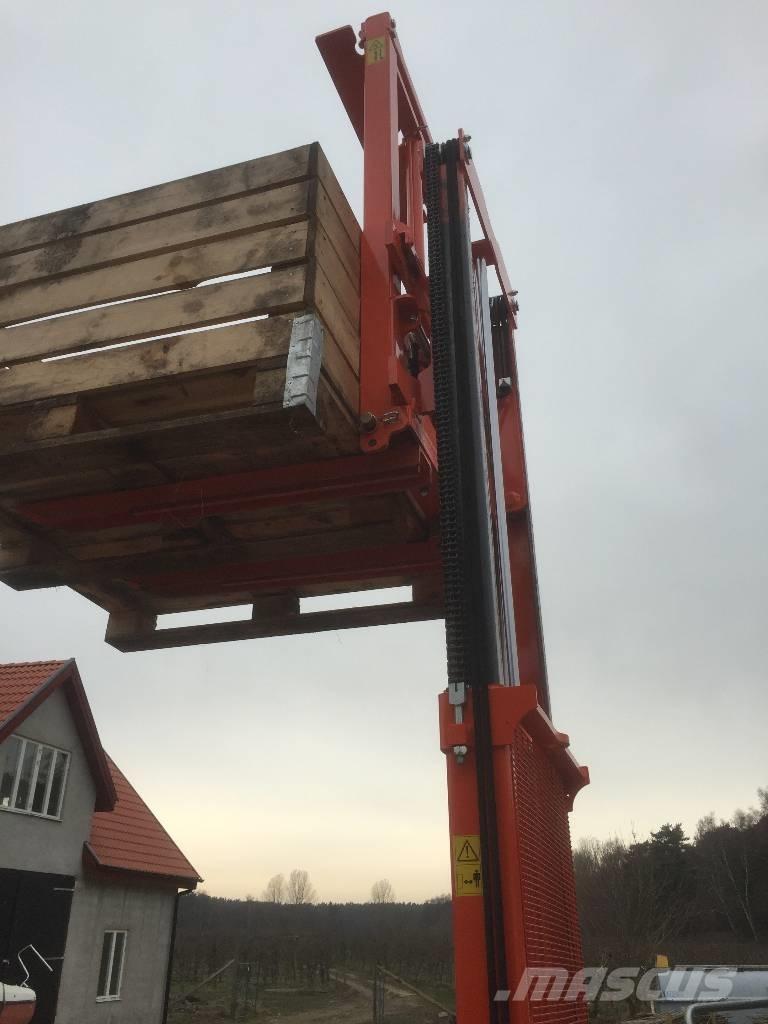

Elevators with hydraulic distributor are specially designed for tractors with three-point linkage through pivot and a shreaded arm. The elevator can function by means of distributor with levers. The needed thrust is setted on by the hydraulic system of the tractor. The elevation function is enabled by action on the hydraulic cylinder togheter with the vertical rods that make the truck slide through the chains. The elevator is equipped with reclining loading forks and security chain for the operator. On demand the folding bins locking is available, the cylinder for folding bins locking the cylinder for the tilting which replaces the threaded arm, the cylinder for the shifting. Specification: Capacity load Max (kg): 1500 Max Elevation (mm) : 3200 Max With (mm): 700 Total With (mm): 840 Side shifting (mm): 100-100 Coupling Height from the ground (mm): 500 Gripper Min. H / Max. H (mm) : 1400 / 2600 Overall dimensions of the mast installed on the tractor (mm): 2410 Hydraulic movements: Lifting + Tilting + Side shift + Bins lockingLaat meer zien

Callenbring & CO AB

Julebodavägen 13 29795 Degeberga Skåne län Zweden
