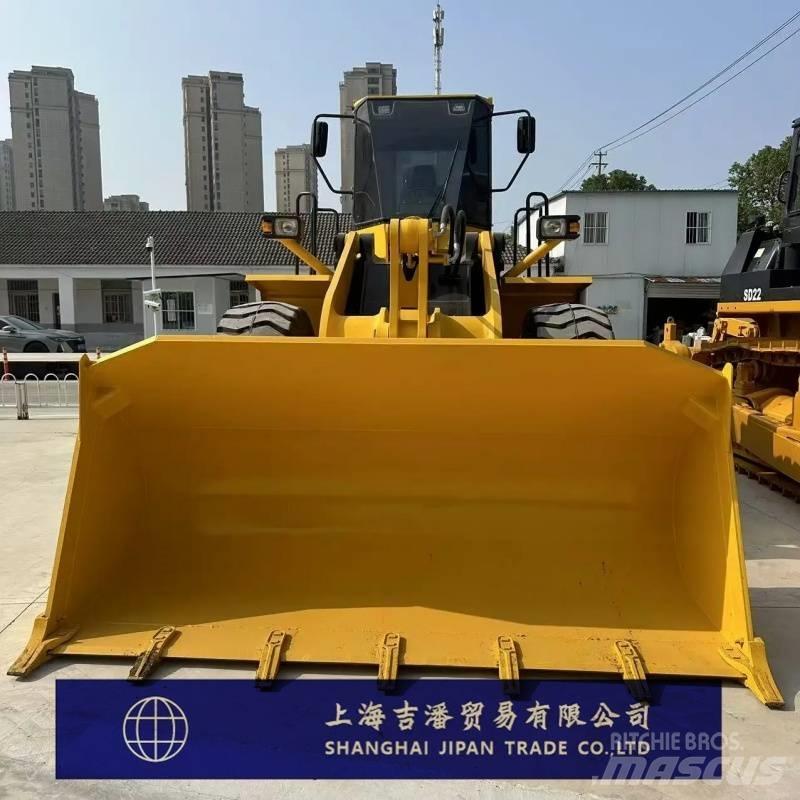

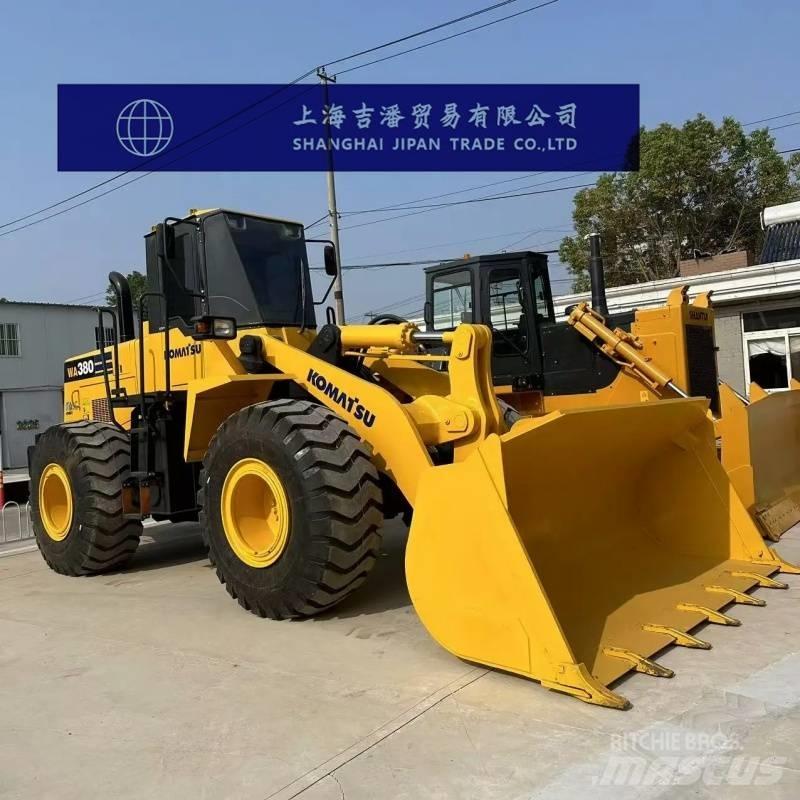

Komatsu WA 380

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Basic performance Rated load capacity (tons) : 3 to 5 tons Rated load capacity (kg) : 5000 The operating weight of the entire machine (kg) is 17,610 Bucket capacity (m³)3.3 Maximum unloading height (mm) : 2820 Unloading distance (mm) : 1245 Excavation force (lifting force) (kN)168 Engine Engine model: Komatsu SAA6D107E-1 Rated power (kw/rpm) : 142/2100 Displacement (L)6.69 Cylinder diameter × stroke (mm)107×124 The cooling method is water cooling Working form: Water-cooled four-stroke turbocharged direct injection type, intercooled, electronic speed regulation Oil capacity Fuel tank (L)300 Hydraulic oil tank (L)139 Engine oil (L)23 Coolant (L)30.5 Transmission Transmission brand and model: single-stage, single-phase, 3-component Maximum speed (km/h) : 34.0 Drive axle The drive axle model is four-wheel drive The drive axle swing Angle (°) is 80 Steering system Steering Angle: 40 Turning radius - outer side of the bucket (mm)40 The minimum turning radius of the centerline of the outer wheel is 6320 Hydraulic system The type of hydraulic pump is a piston pump At the rated speed (l/min), the flow rate is 138 Rated working pressure (bars) : 31.4Mpa The diameter of the boom cylinder × stroke (mm×mm) is 130*713 Bucket cylinder diameter × stroke (mm×mm)150*535 The operating time of the working device Lift (s)5.9 Uninstall (s)1.8 Lower the empty bucket (s)3.3 Three items sum up (s)11 Technical parameters Overturning load (kg) 14,790 The height of the material transportation position (mm) is 4095 Overall machine size The overall length of the machine (mm) is 8300 The overall width of the machine (mm) is 2780 The overall height of the machine is 3395 mm The maximum length of the entire machine (mm) is 7765 The maximum total height of the entire machine (mm) is 5195 Minimum ground clearance (mm) : 455 Bucket width (mm) : 2760 Wheelbase (mm) : 3300 Track (mm) : 2160
