Casagrande B175XP
Prijs excl. BTW
Prijs op aanvraag
6
Favoriet
Delen
Zoekopdrachten bewarenAfdrukken
INFORMATIE
Productgroep
Heistellingen
Merk / model
Casagrande B175XP
Bouwjaar
2018
Aantal gebruiksuren
4.170 h
Plaats
Middlesbrough, Cleveland
Land
Verenigd Koninkrijk
Algemene score
1
2
3
4
5
Mascus ID
D44F3DE1
DETAILS
Voorraad nummer
PF 40558
Voorwaarden info/Garantie
All of our machines are checked and tested to ensure they are in full working condition when they reach your site – that is the Sigma guarantee.
Land van productie
Colombia
Certificaten
CE
Overige informatie

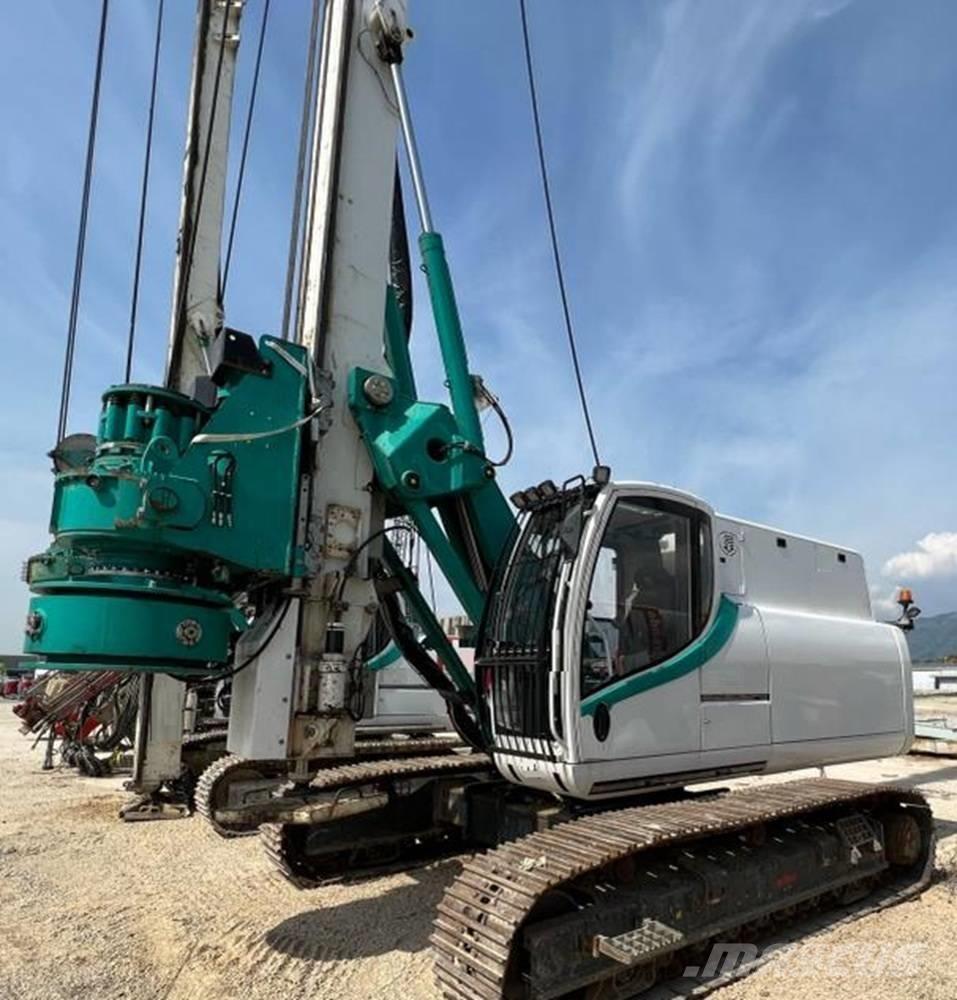

Piling rig with 4170 working hour
Capable of bored piles, CFA & FDP

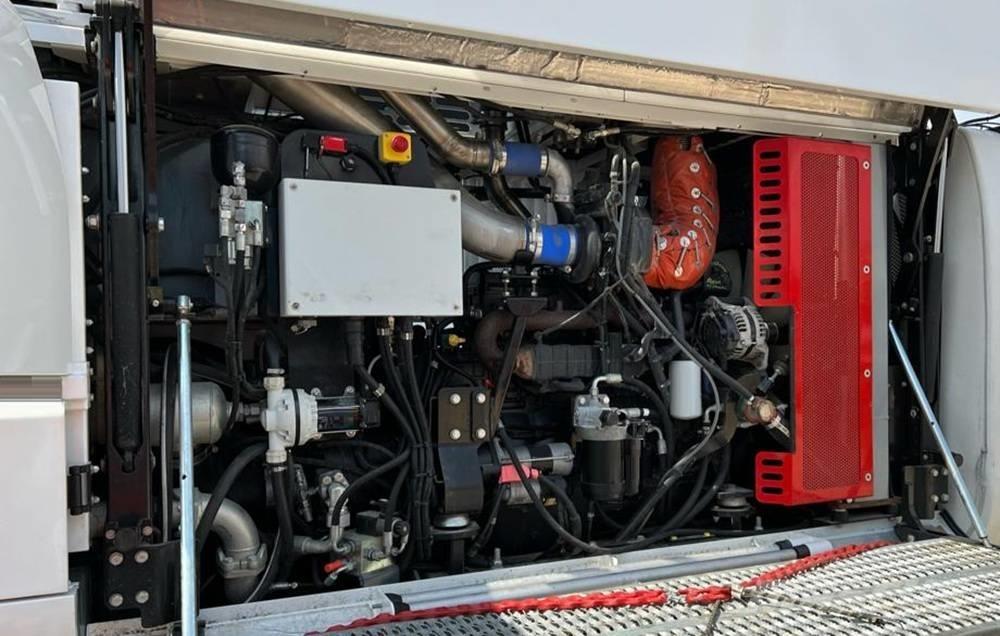

Engine – Cummins QSB 6.7 194kW @ 2200rpm (Stage 4 / Tier 4F)
Undercarriage 2500-3700mm (closed-open)
Rotary head – H18 (max torque 175kNm with cardan joint)
Winches – 160kN main, 70kN auxiliary
Pull down winch – Crowd/extraction force 280kN, stroke 12,300mm
Kelly bar – 4 x 7.5m interlocking (kelly box 130x130mm, diameter 355mm)
Rapid CFA – Special adapter for drive sleeve, wedge for jib, female half joint for augers, 1.2m mast extension, swan neck for concrete pipes, short drive sleeve for CFA complete with reaction bar & inner reduction, 6m long drive sleeve for CFA with reaction bar & inner reduction, lower centering guide for CFA-R.
CE Certified
