Bauer MBF10

Prijs excl. BTW

Prijs op aanvraag

FavoriteFavoriet
shareDelen
Save searchZoekopdrachten bewaren
Afdrukken

INFORMATIE

Productgroep
Heistellingen
Merk / model
Bauer MBF10
Bouwjaar
2007
Aantal gebruiksuren
6.750 h
Plaats
Middlesbrough, Cleveland
Land
Verenigd Koninkrijk
Algemene score
1
2
3
4
5
Mascus ID
1C2962D2

DETAILS

Voorraad nummer
PF 40424
Voorwaarden info/Garantie
All of our machines are checked and tested to ensure they are in full working condition when they reach your site – that is the Sigma guarantee.
Land van productie
Verenigde Staten
Overige informatie

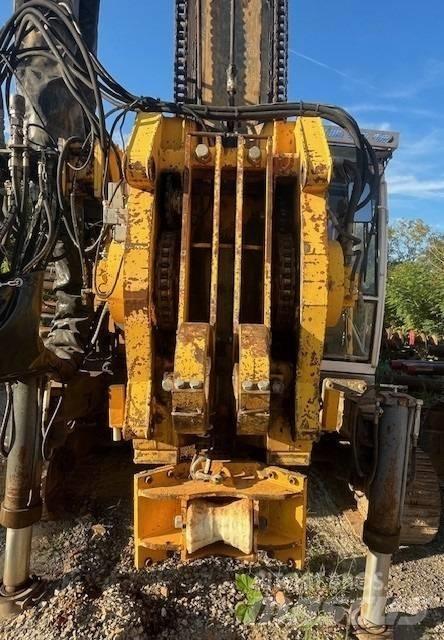

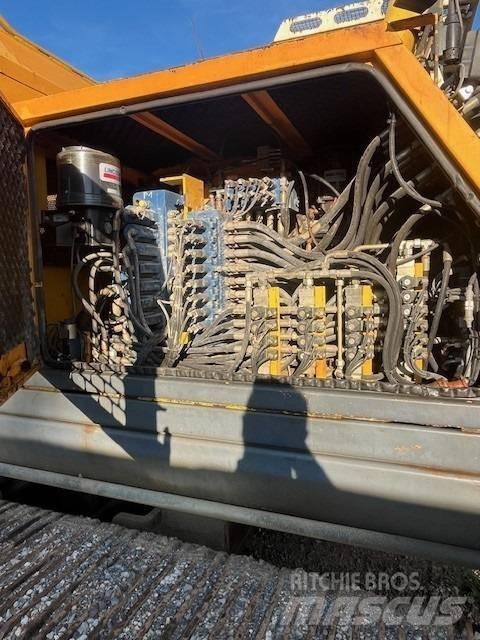

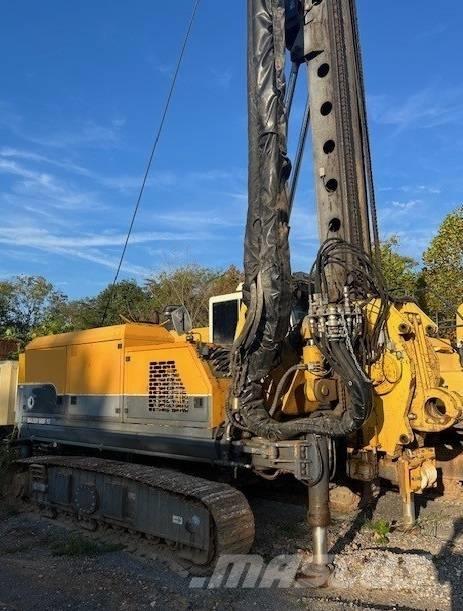

Bottom feed stone column vibro machine with 6750 operating hours Bauer MBF10 carrier with UW25 undercarriage Bauer B tronic data logging system Side dump bucket for CTL overall height 16m floor plate width 500mm overall width 2500-3300mm crawler length 4200mm width of track shoes 500mm traction force (effective) 210kN Cummins diesel engine (201kW @ 2000rpm, Tier lll) Hydraulic system – hydraulic power output 146kW oil flow 2 x 150 + 1 x 120L/min operating pressure 300bar hydraulic tank 400L 2 x TR17 vibro – max depth 10.1m, centrifugal force 193kN, eccentric moment 1.7kgm, frequency 53Hz operating weight 39.5T main winch 125kN (rope diameter 20mm) auxiliary winch 75kN (rope diameter 16mm) Ingersoll rand 375/150 air compressor - output 93kW, delivery rate 10.3 cubic metres per minute, delivery pressure 10bar Crowd system – crowd force (push/pull) 125/125kN Total pull (winch & chain) 225kN. 2 x TR17 vibro lances with hoppersLaat meer zien

SIGMA PLANTFINDER LIMITED

Middlesbrough Road TS6 6LZ Middlesbrough Cleveland Verenigd Koninkrijk
