Bauer MBF10
Prijs excl. BTW
Prijs op aanvraag
18
Favoriet
Delen
Zoekopdrachten bewarenAfdrukken
INFORMATIE
Productgroep
Heistellingen
Merk / model
Bauer MBF10
Bouwjaar
2007
Aantal gebruiksuren
6.750 h
Plaats
Middlesbrough, Cleveland
Land
Verenigd Koninkrijk
Algemene score
1
2
3
4
5
Mascus ID
0A3DF58C
DETAILS
Voorraad nummer
PF 40524
Voorwaarden info/Garantie
All of our machines are checked and tested to ensure they are in full working condition when they reach your site – that is the Sigma guarantee.
Land van productie
Verenigde Staten
Overige informatie

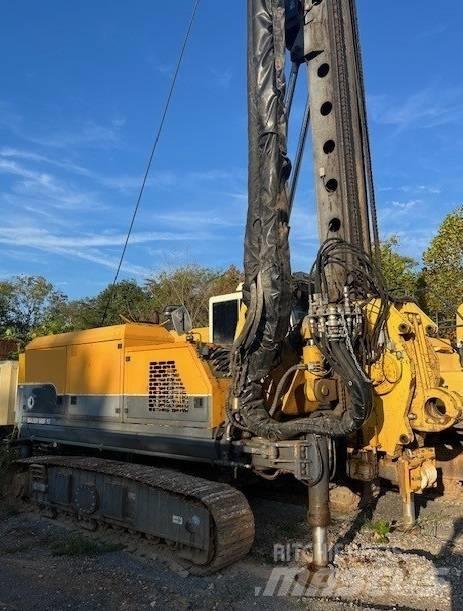

Bottom feed stone column vibro machine with 6750 operating hours
Bauer MBF10 carrier with UW25 undercarriage
Bauer B tronic data logging system
Side dump bucket for CTL
overall height 16m
floor plate width 500mm
overall width 2500-3300mm
crawler length 4200mm
width of track shoes 500mm
traction force (effective) 210kN
Cummins diesel engine (201kW @ 2000rpm, Tier lll)

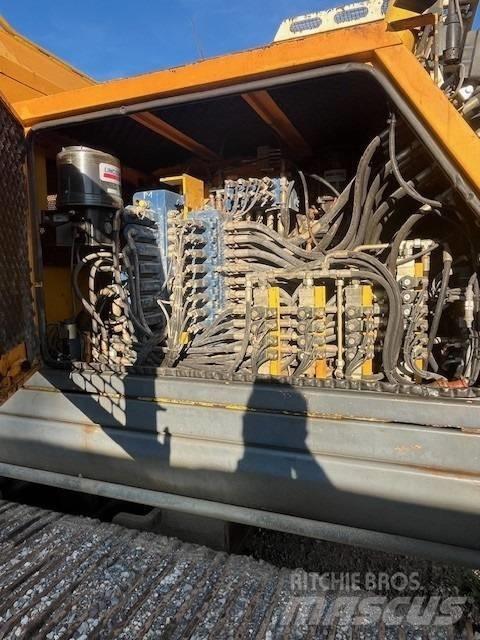

Hydraulic system – hydraulic power output 146kW
oil flow 2 x 150 + 1 x 120L/min
operating pressure 300bar
hydraulic tank 400L
2 x TR17 vibro – max depth 10.1m, centrifugal force 193kN, eccentric moment 1.7kgm, frequency 53Hz
operating weight 39.5T
main winch 125kN (rope diameter 20mm)
auxiliary winch 75kN (rope diameter 16mm)
Ingersoll rand 375/150 air compressor - output 93kW, delivery rate 10.3 cubic metres per minute, delivery pressure 10bar Crowd system – crowd force (push/pull) 125/125kN
Total pull (winch & chain) 225kN.
2 x TR17 vibro lances with hoppers
SIGMA PLANTFINDER LIMITED
Middlesbrough Road TS6 6LZ Middlesbrough Cleveland Verenigd Koninkrijk
