Takeuchi TS60V

Prijs excl. BTW

Compnay LOGO
Images6
Takeuchi TS60V Schrankladers
Takeuchi TS60V Schrankladers
Takeuchi TS60V Schrankladers
FavoriteFavoriet
shareDelen
Save searchZoekopdrachten bewaren
Afdrukken

INFORMATIE

Productgroep
Schrankladers
Merk / model
Takeuchi TS60V
Bouwjaar
2013

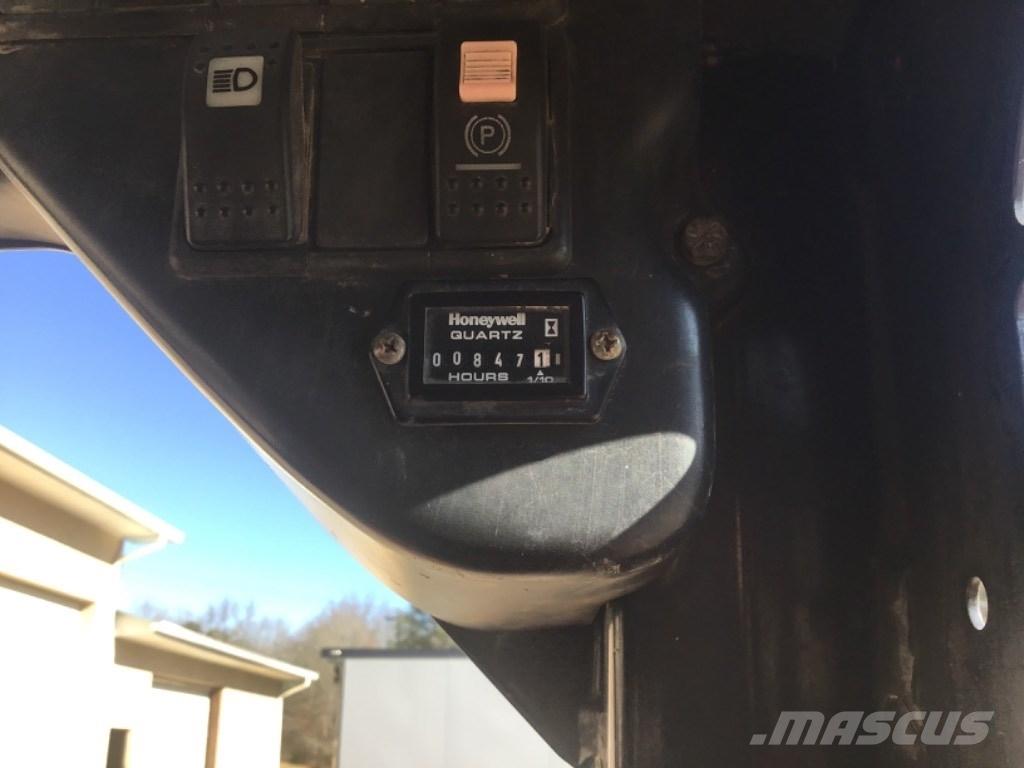

Aantal gebruiksuren
862 h
Plaats
DENTON
Land
Verenigde Staten
Algemene score
1
2
3
4
5
Mascus ID
3D8C1116

PRIJZEN

Valuta kiezen

DETAILS

Voorraad nummer
10
Serienummer
T3V06000251
Totaalgewicht GVW
3.169 kg
Originele kleur
Red
Voorwaarden info/Garantie
In good working condition
Overige informatie
OPERATING PERFORMANCE Loader Type Operating Weight - Canopy Tipping Load Rated Operating Capacity, SAE J818* Bucket Breakout Force Lift Arm Breakout Force Traction Force Vertical 6,986 lbs (3,169 kg) 4,000 lbs (1,814 kg) 2,000 lbs (907 kg) 4,130 lbs (1,873 kg) 3,675 lbs (1,667 kg) 8,453 lbs (3,834 kg) *Operating capacity of skid steer loaders is rated according to SAE J818 at no more than 50% of the tipping load. ENGINE Make Model Cylinders Displacement Horsepower Rated Engine Speed Maximum Torque Engine Lubrication Cooling System Fuel Tank Capacity Electrical System Perkins 404D-22T, Turbocharged 4 135 cu in (2.2 L) 60 hp (44.7 kW) 2,800 rpm 140 ft-lb (190 Nm) 11.2 qts (10.6 L) 14 qts (13.2 L) 25 gal (95 L) 12 volts 65 amps WORKING DIMENSIONS A. Maximum Lift Height to Bucket Pin B. Dump Height Fully Raised C. Dump Reach Fully Raised D. Maximum Bucket Rollback at Ground E. Maximum Dump Angle Fully Raised DRIVE TRAIN AND FRAME Traction Drive Type Chain Case Chain Size Wheel Size Width Over Tires Maximum Travel Speed: Single Speed Optional Two-Speed HYDRAULIC Hydraulic Reservoir Capacity Auxiliary Flow - Primary Circuit Hydraulic System Pressure Hydrostatic Bow Tie Drive System 80 ANSI Chain 10 x 16.5 66.5 in (1,689 mm) 8.2 mph (13.2 km hr) 11.7 mph (18.8 km hr) 8.0 gal (30.2 L) 17.1 gal min (65 L min) 3,335 psi (22.9 MPa) 9 ft 8 in (2,997 mm) 7 ft 2.3 in (2,207 mm) 2 ft 5 in (762 mm) 26.7° 48.3°Laat meer zien
