INFORMATIE

Productgroep
Rupsgraafmachines
Merk / model

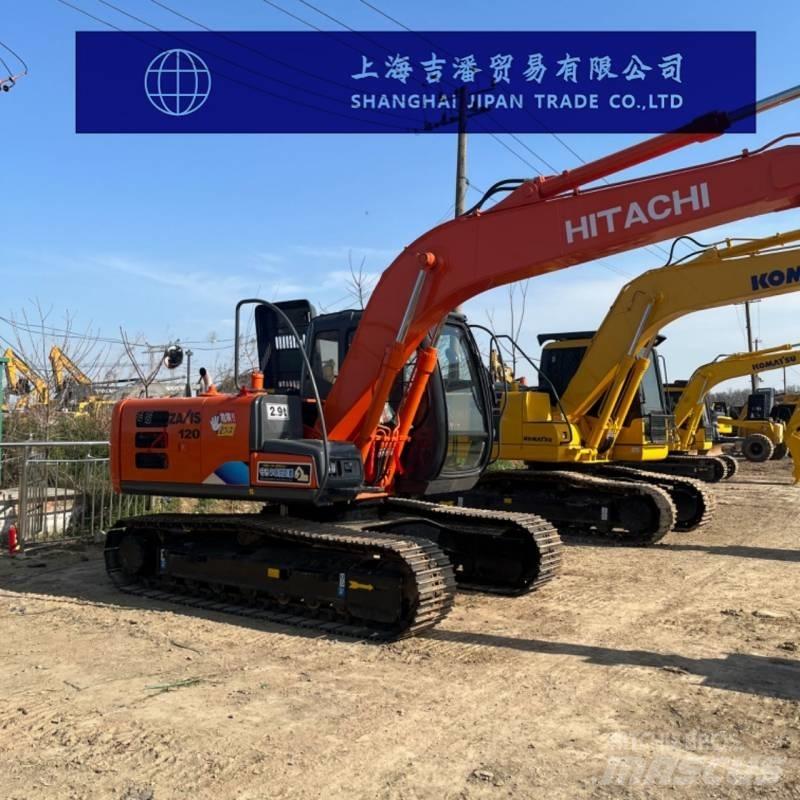

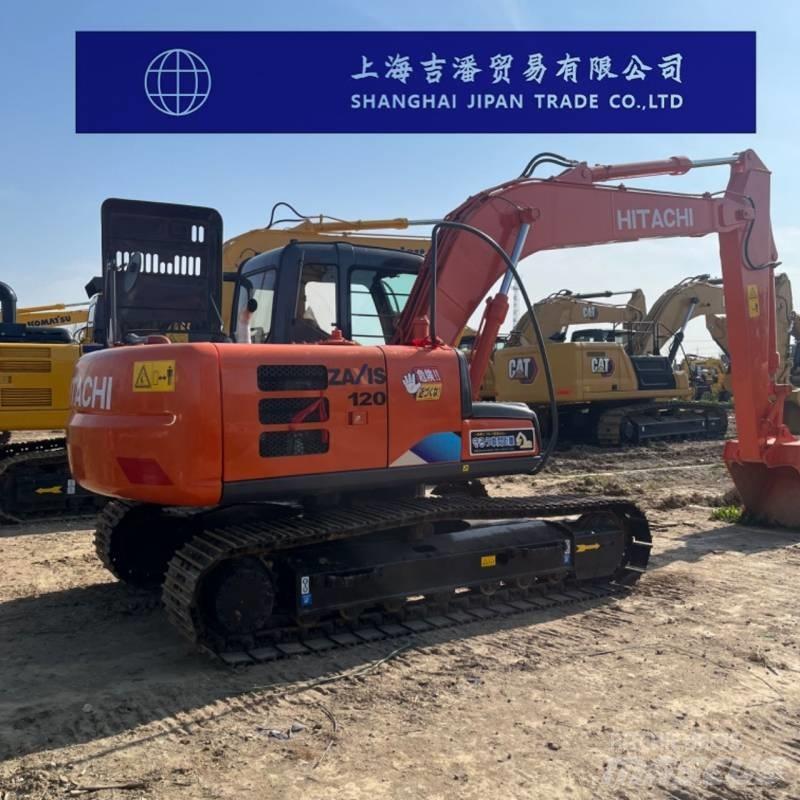

Hitachi ZX 120
Bouwjaar
2024
Aantal gebruiksuren
600 h
Land
China
Algemene score
1
2
3
4
5
Mascus ID
47057DCF

PRIJZEN

Valuta kiezen

DETAILS

Voorraad nummer
1
Type
Diesel
Serienummer
1
Aantal vorige eigenaren
1
Laatste inspectie
2025-07-15
Staat van het onderstel
Good Condition
Motor
Original
Totaalgewicht GVW
11.500 kg
Motor vermogen
73 kW (99,3 pk)
Motorfabrikant
Original
Kentekennummer
1
Emissieklasse
Fase V

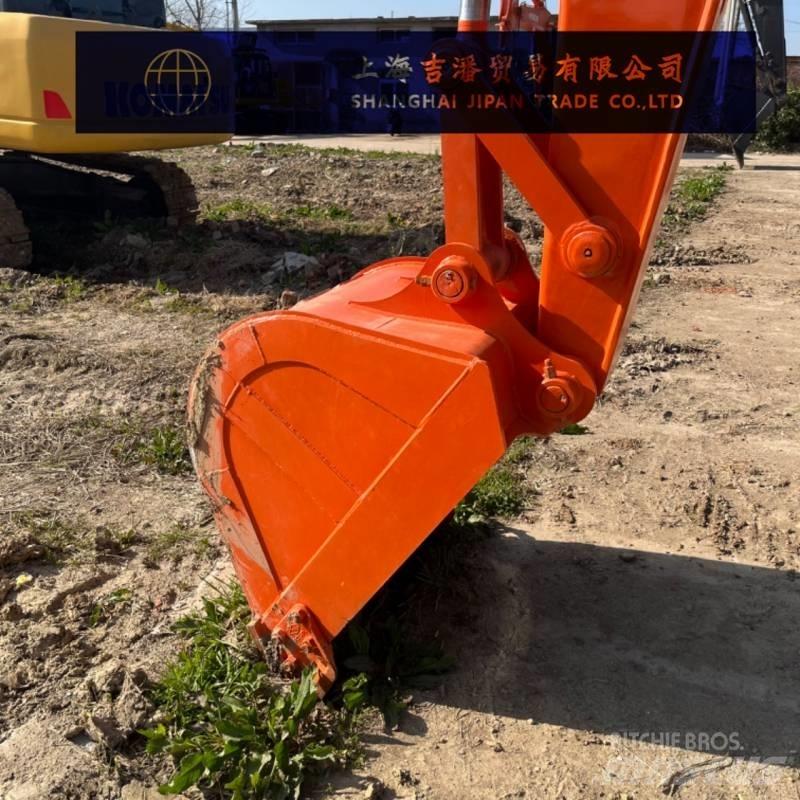

Inhoud graafbak
0,52 m3
Rupsbreedte
500 mm
Vermogen aanvullende hydraulica
280 l/min
Topsnelheid
5,50 km/h
Afmetingen (LxBxH)
7610 x 2490 x 2740 mm
Originele kleur
Original
Lengte lepelsteel
2.260 mm
Voorwaarden info/Garantie
1 Year
Land van productie
Japan
Leveringsvoorwaarden
FCA, FOB, CIF, EXW
Certificaten
EPA, CE
Toebehoren
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.
Accessoires
Kabelkast
Airconditioning
Motor voorfilter
Puinriek
Laat meer zien
Overige informatie
Specification Power Traditional Power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)12 The working weight of the entire machine (kg) is 11,500 Bucket capacity (m³) : 0.52 Boom length (mm) : 4270 The length of the boom (mm) is 2260 Performance Rotational speed (rpm) : 13.5 Walking speed (km/h)5.5/3.3 Climbing ability (%) : 70 Ground pressure (Kpa) : 36 Bucket digging force (kN)95 Bucket shaft digging force (kN)57 Power system Engine model: Isuzu GJ-4JJ1XKSA-03 Rated power (kw/rpm)73/2000 Displacement (L)2.999 Hydraulic system Main pump type variable: Axial piston pump *2 Oil capacity Fuel tank (L)280 Hydraulic oil tank (L)70 Engine oil change volume (L)17 Main body size The total length of transportation (mm) is 7340 The total transportation width (mm) is 2490 The total transportation height (mm) is 2870 The total height of the cab (mm) is 2790 Track plate width (mm) : 500 Track gauge (mm)1990 Minimum ground clearance (mm)410 The ground clearance of the counterweight (mm) is 840 The minimum turning radius (mm) of the front working device is 2370 The rear end turning radius (mm) is 2190 Scope of work Maximum excavation radius (mm) : 7740 The maximum excavation radius (mm) of the shutdown face is 7600 Maximum excavation depth (mm) : 5050 Maximum excavation height (mm) : 8140 Maximum unloading height (mm) : 5730 Maximum vertical excavation depth (mm) : 4090

上海吉潘贸易有限公司

上海市松江区车墩镇莘莘路32号3799 201600 上海 上海 China
