Shantui SD32

Prijs excl. BTW

Prijs op aanvraag

Compnay LOGO
Images3

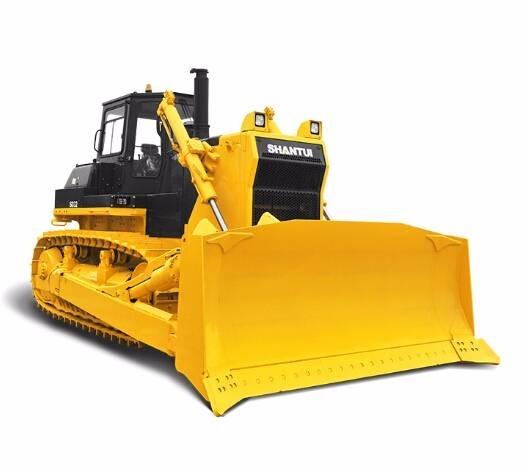

Shantui SD32 Rupsdozers
Shantui SD32 Rupsdozers
Shantui SD32 Rupsdozers
FavoriteFavoriet
shareDelen
Save searchZoekopdrachten bewaren
Afdrukken

INFORMATIE

Productgroep
Rupsdozers
Merk / model
Shantui SD32
Bouwjaar
2018
Status
Nieuw/ongebruikt,Verhuur mogelijkheden,Hersteld / Reconditioned
Plaats
Jining, Shandong, China
Land
China
Algemene score
1
2
3
4
5
Mascus ID
9DD39A99

DETAILS

Voorraad nummer
SD32
Laatste inspectie
yes
Onderhoudsgeschiedenis
Ja
Werkbreedte
413 cm
Serienummer
SD32
Totaalgewicht GVW
37.200 kg
Type schuif
Rechte schuif
Onderwagen %
Rupsaandrijving
Type cabine
Gesloten cabine
Emissieklasse
Fase II
Motor
Cummins NTA855-C360S10
Motor vermogen
232 kW (315 pk)
Rupsbreedte
560 mm
Transmissie
Shantui
Motorfabrikant
Cummins
Afmetingen (LxBxH)
6880 x 4130 x 3730 mm
Originele kleur
yellow
Banden merk
Shantui
Voorwaarden info/Garantie
ISO9001
Resterend profiel voorbanden
100
Land van productie
China
Uitgerust voor
propertynames.pp_equippedfor_2100012
Leveringsvoorwaarden
FOB, CFR, CIF, EXW
Certificaten
EPA, CE, ANSI
Accessoires
Lier
Airconditioning
Aanvullende hydraulica
Ripper
Laat meer zien
Overige informatie
Technical Features ●Chongfa NTAA855-C360S10 engine is equipped with exhaust gas turbocharger, featuring strong power and high efficiency and energy-saving, and can work normally even in the highlands as high as 3,600m. Depending on the customers’ demands, the option Cummins and Weichai engines are available. ●The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission capacity and efficiency and high productivity. ●The independent engine water tank, the chassis oil cooler, and the water-air intercooler integrated in the Chongfa engine provide prominent cooling performance and simple maintenance operations to guarantee the continuous working of the machine. ●The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bending moment to support the continuous high-strength working of machine under severe working condition and the high quality welds guarantee the life cycle of the main frame. ●The low-drive final drive can provide powerful drive force and efficient gradeability. Shantui's crawler chassis has reached the international advanced level in process level and can adapt to various complicated working conditions, featuring high reliability and carrying capacity. ●The standard straight tilting blade features powerful cutting force and the single-shank and three-shank rippers of adjustable penetrating angle can be used for the ripping of clay and frozen earth as well as the stripping of hard working faces, such as gravel and hardened salt mine. Performance Parameters Length × width × height (mm) (excluding ripper) 8560×4130×3640(including ripper) Operating weight (t)(excluding ripper) 37.2 Engine model NTA855-C360S10 Net power/rated speed (kW/rpm) 235/2000 Ground pressure(Mpa) 0.105 Blade type Straight tilting blade Angle blade Semi-U blade Blade capacity(m3) 10 for straight tilting blade 6.2 for angle blade 11.7 for Semi-U blade Applicable Working Conditions Bulldozing, digging, landfill, and other bulk operations.Laat meer zien
