Horyong BMK-403 ECO

Prijs excl. BTW

FavoriteFavoriet
shareDelen
Save searchZoekopdrachten bewaren
Afdrukken

INFORMATIE

Productgroep
Overige hijsinrichtingen
Merk / model
Horyong BMK-403 ECO
Bouwjaar
2018
Aantal gebruiksuren
287 h
Plaats
Duisburg, Nordrhein-Westfalen
Land
Duitsland
Algemene score
1
2
3
4
5
Mascus ID
A65059D6

PRIJZEN

Valuta kiezen

DETAILS

Aantal vorige eigenaren
1
Totaalgewicht GVW
4.019 kg
Maximale hefcapaciteit
4.200 kg
Maximaal hefvermogen einde jib
3.000 kg
Lengte van kraanarm
680 cm
Beweegbare jib
220 cm
Jib lengte
680 cm
Maximale hefhoogte
1.020 cm
Hoogte horizontale kraanarm
840 cm
Haakhoogte kraan - luffed jib
221 cm
Bovenmotor
see chassis
Bovenuren
200 h
Originele kleur
Silber-Grün
Ondermotor
Electric
Afmetingen (LxBxH)
435000 x 157000 x 205000 mm
Voortbeweging, wielen - rups
Wielaandrijving
Banden merk
NM-Bereifung
Resterend profiel voorbanden
90
Resterend profiel achterbanden
90
Land van productie
Zuid-Korea
Leveringsvoorwaarden
FCA, CPT, EXW
Certificaten
CE, TÜV
Toebehoren
Hakenflasche 1-rollig
Accessoires
Hijshaken
Overige informatie

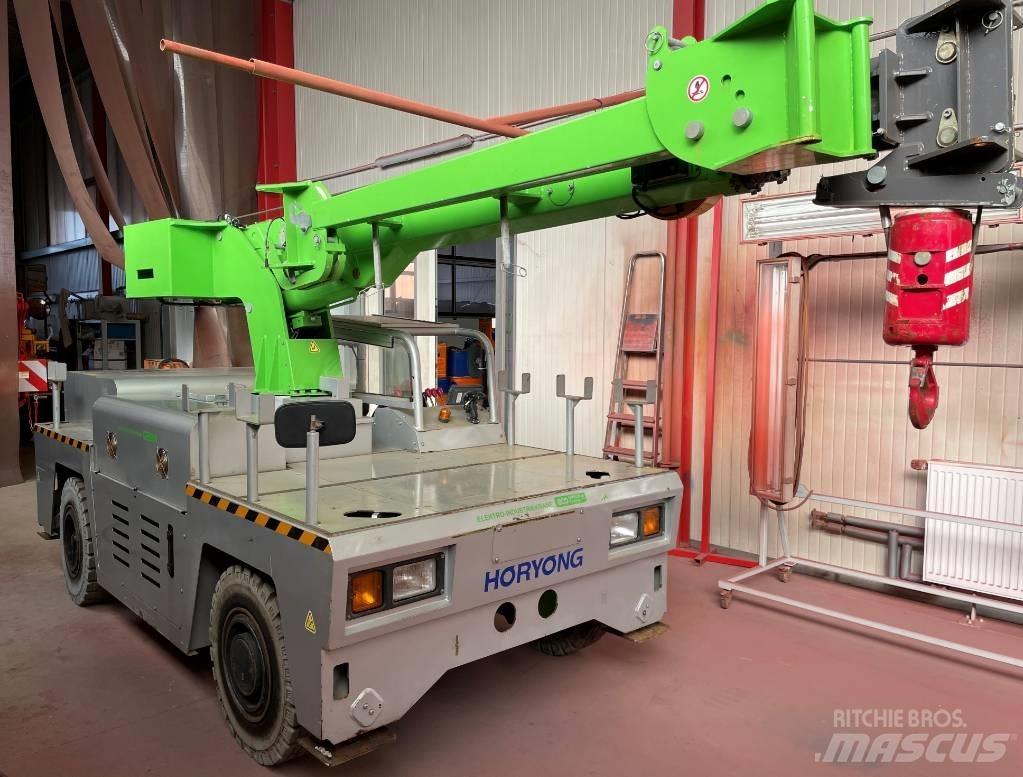

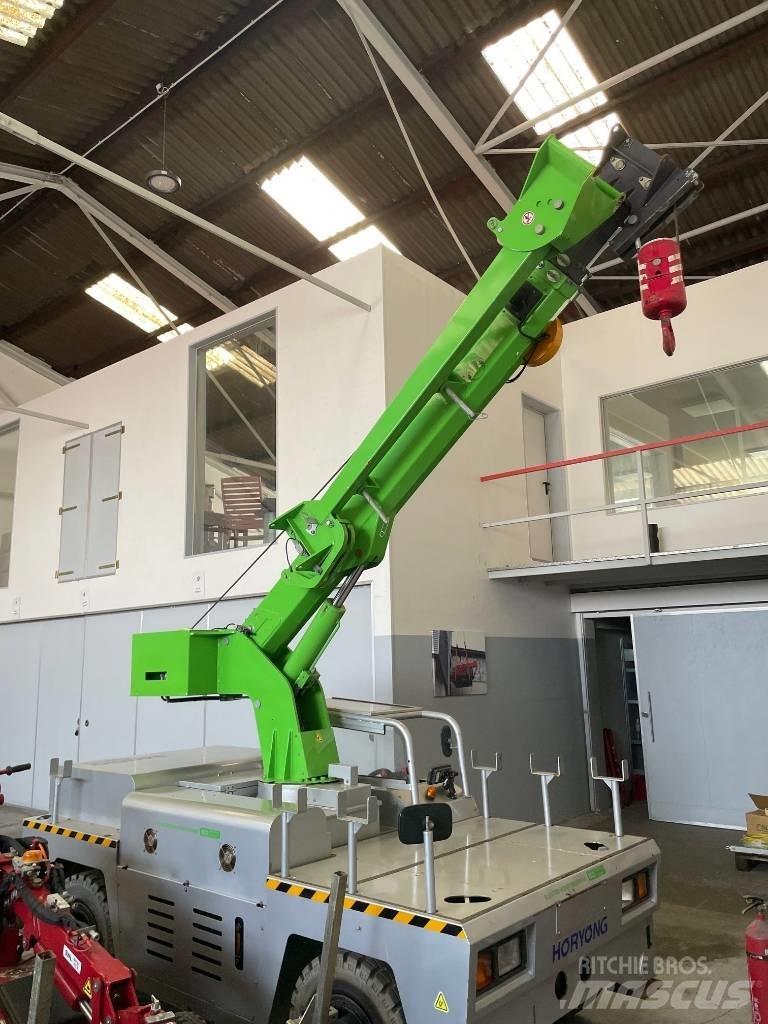

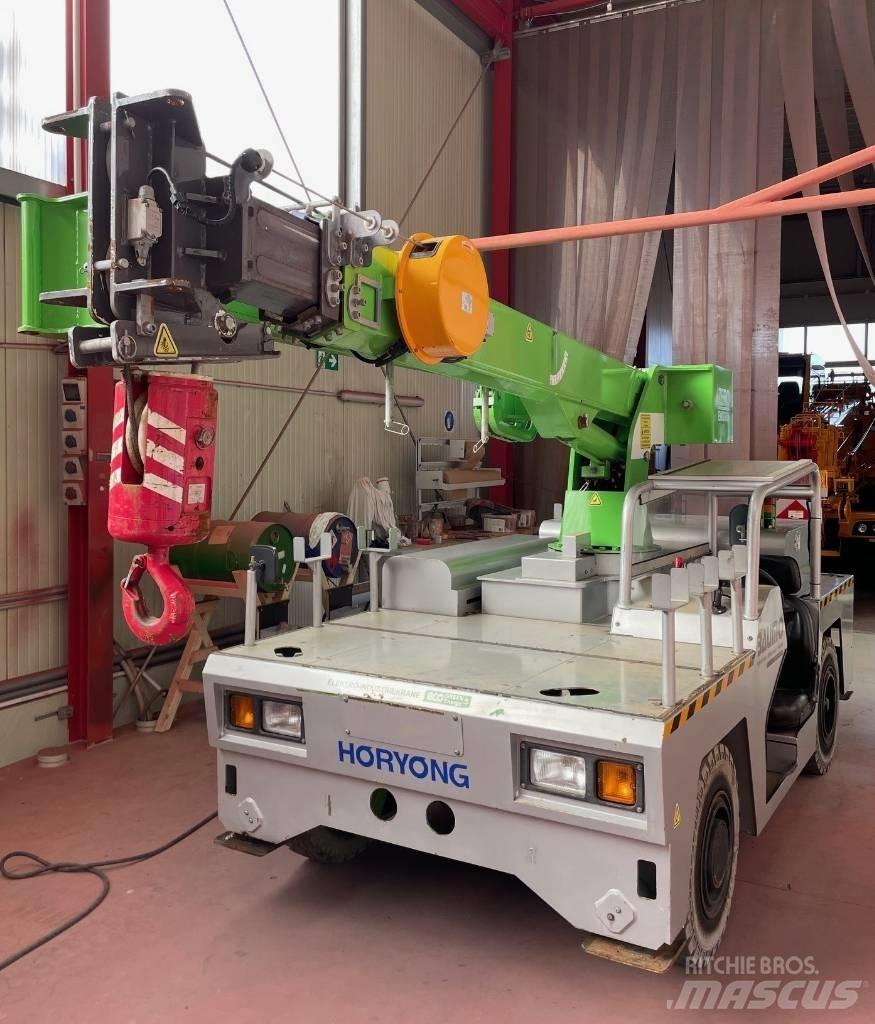

Battery industrial yard crane HORYONG BMK-403 ECO, used unit battery drive, CE 2018, approx. 287 working hours Pick+carry and Carry deck TECHNICAL DETAILS: max. lifting capacity 4,2 t x 0,9 m max. load pick + carry 2,9 t max. load on carry deck 2,5 t max. working range 6,7 m (8,2 m with fly jib) max. hook height: 8,41 m (10,2 m with fly jib) DIMENSIONS & WEIGHT length 4.350 mm width 1.570 mm, height 2.050 mm total weight of crane: 4.019 kg outrigger base: 2.330 mm x 3.330 mm CRANE EQUIPMENT: telescopic main boom 3,07 bis 6,8 m, fully hydraulic, 3 sections fly jib with sheave head 2,2 m, max. lifting capacity 1,2 t, angel 0°, 25°, 50° one winch 360° slewing range unlimited Electronical Safe Load Indicator System Rayco Wylie i4500 working range limiter optical and voice warning system working light, emergency stop, round-about light hook block 1-sheave, max. 4,0 t lifting capacity drive 4 x 2 x 2 Carry-Deck for goods, size 1,55 m², max. load 2,9 t 3 pieces pipe holders / transport holders 4-point hydraulic outriggers, front and rear electric engine with batteries, 2x 10 kW, 72V / 300 Ah, rechargable batteries, integrated battery charger max. speed of crane is 6 km/h 4x non marking tires open crane driver cabin with lattice protection roof, operation panel The electric yard crane crane is in good working condition and can be ideally used inside hall areas where exhausts are vorbidden, The unit is immediately available ex our yard and can also be rented for jobsites in Germany.Laat meer zien

Mini & Mobile Cranes Körner GmbH

Alte Kaserne 23 47249 Duisburg Nordrhein-Westfalen Duitsland
