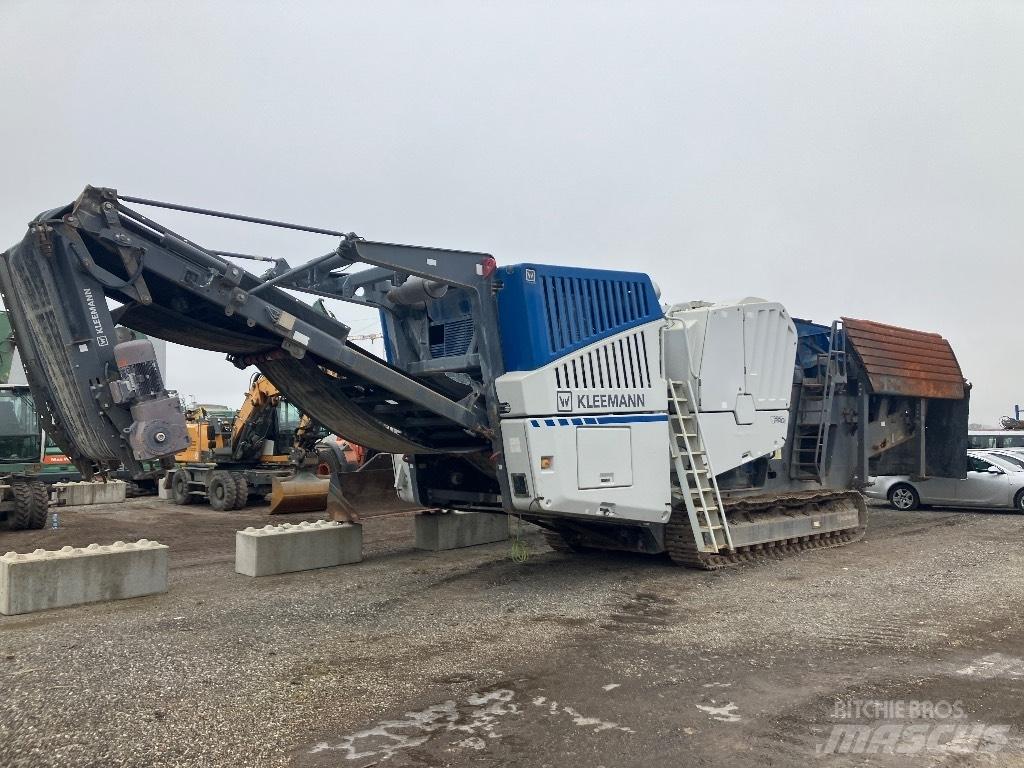

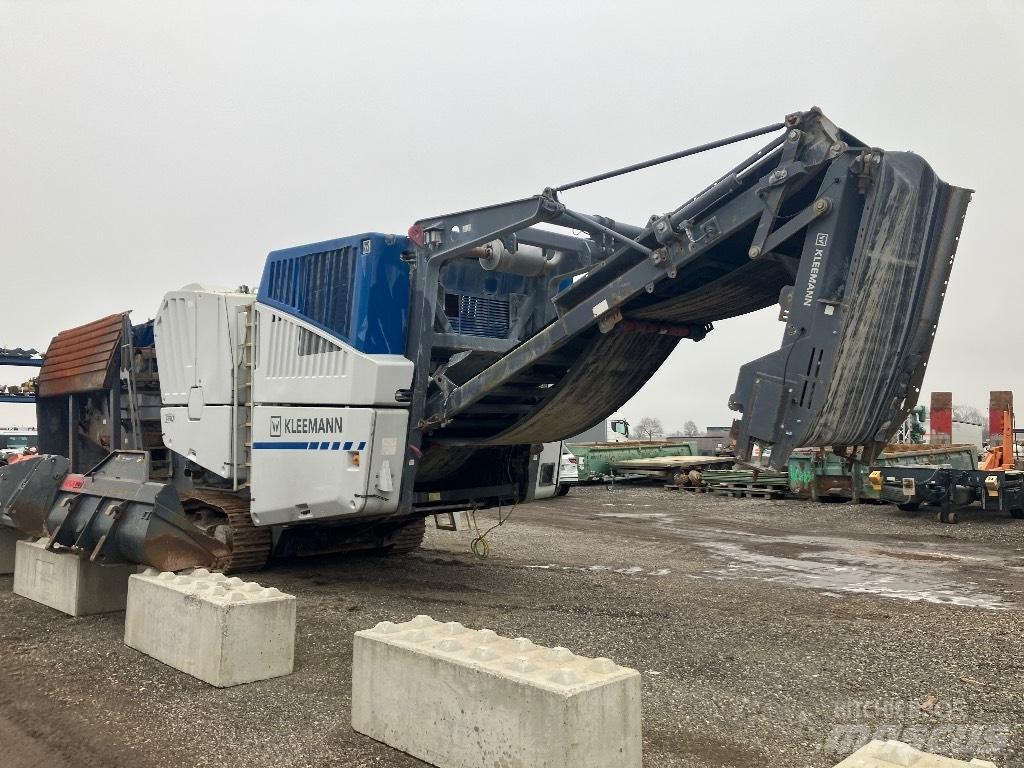

Kleemann MC 120 Z

Feeding unit Feed capacity up to approx. (t/h) 1) 450 Feed size max. (mm) 1,100 x 700 Feed height (with extension) (mm) 4,600 (5,200) Width x Length (with extension) (mm) 2,850 x 4,100 (3,600 x 4,700) Hopper volume (with extension) (m³) 10.5 (15) Vibrating feeder Width x Length (mm) 1,200 x 3,500 Prescreening Type double-deck heavy-piece screen Width x Length (mm) 1,200 x 2,500 Side discharge conveyor (optional) Width x Length (mm) 650 x 6,000 Discharge height approx. (mm) 3,500 Crusher Single toggle jaw crusher type STR 1,200 x 800 Crusher inlet width x depth (mm) 1,200 x 800 Crusher weight approx. (kg) 24,500 Crusher drive type, approx. (kW) electric, 160 Adjustment range of gap width (mm) 2) 45 - 175 Crusher gap adjustment hydraulic / mechanical Crushing capacity 3) with CSS 85 mm: approx. from - to (t/h) 145 - 190 with CSS 100 mm: approx. from - to (t/h) 165 - 215 with CSS 130 mm: approx. from - to (t/h) 205 - 270 with CSS 160 mm: approx. from - to (t/h) 250 - 320 Vibrating extractor Width x Length (mm) 1,300 x 2,600 Crusher discharge conveyor Width x Length (extended) (mm) 1,400 x 10,000 (11,500) Discharge height approx. (extended) (mm) 3,970 (4,500) Power supply unit Drive concept diesel-electric Scania (Tier 3/Stage IIIA) (kW) 364 (1,500 rpm) Scania (LRC) (kW) 365 (1,500 rpm) Generator (kVA) 410 Transport 4) Transport height approx. (mm) 4,100 Transport length approx. (mm) 16,800 Transport width max. (mm) 3,100 Transport weight approx. (kg) 70,000 1) dependent on the type and composition of the feed material, the feed size, the prescreening, as well as the desired final grain size 2) gap width range can be changed by using special crusher jaws and/or pressure plates 3) for hard stone, CSS = Close Side Setting 4) no options
