Unic URW-506
Prijs excl. BTW
Prijs op aanvraag
Afdrukken
INFORMATIE
Productgroep
Minikranen
Merk / model
Unic URW-506
Bouwjaar
2016
Aantal gebruiksuren
2.288 h
Land
Verenigd Koninkrijk
Mascus ID
5371E427
DETAILS
Serienummer
50W5044
Totaalgewicht GVW
4.990 kg
Maximale hefcapaciteit
3.000 ton
Lengte van kraanarm
15,7 m
Motorfabrikant
Yanmar
Maximale hefhoogte
16 m
Afmetingen (LxBxH)
4870 x 1400 x 2035 mm
Documents
Overige informatie
The URW-506 can lift up to 3 tonnes to a height of 3.4 metres, or up to 4 tonnes with an optional 5-fall hook block.
This gives you more lifting capacity and better lifting options. The UNIC URW-506 has a good maximum lifting height of 16m, and an optional fly jib with a 700kg capacity adds another 1790mm of reach. You can also use a 500kg searcher hook to work under soffits and overhangs. This mini crane can still fit through a double doorway, but it can also be taken apart and put back together using the crane’s own winch in tight or remote places.

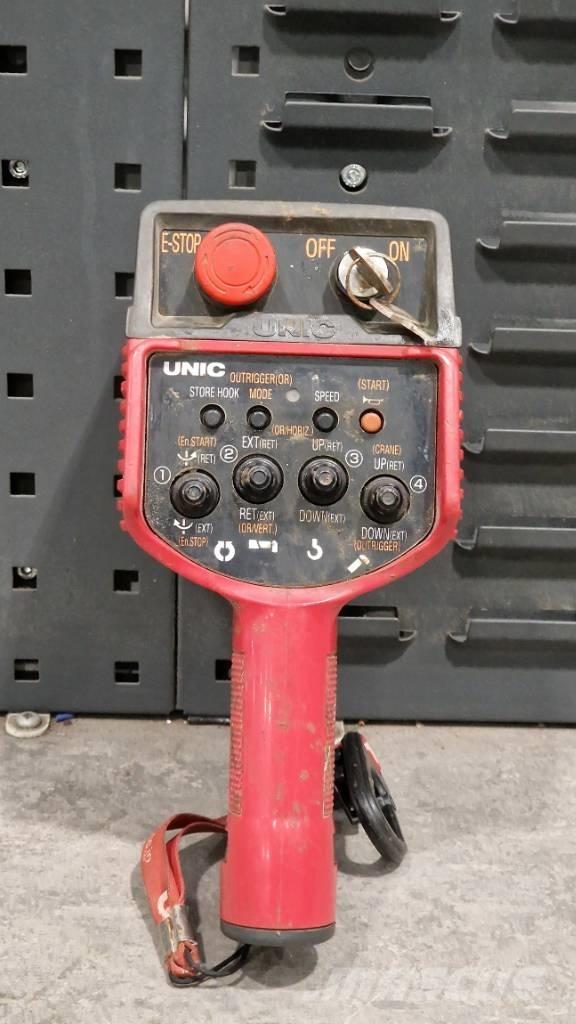

The URW-506 has a radio remote control and a safe load indicator that lets the operator set a working area limit for better control in sensitive environments. The Lift-Smart Advanced Safety System also has an alarm for overwinding, an intelligent voice warning system that is controlled by a computer, an intelligent throttle activation system, and an audio-visual warning device.
