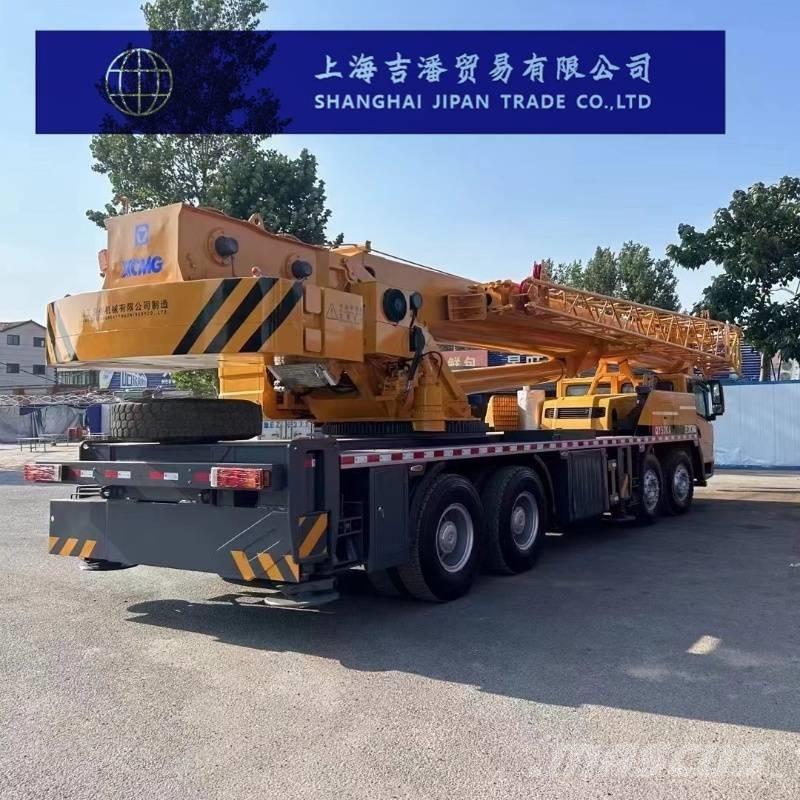

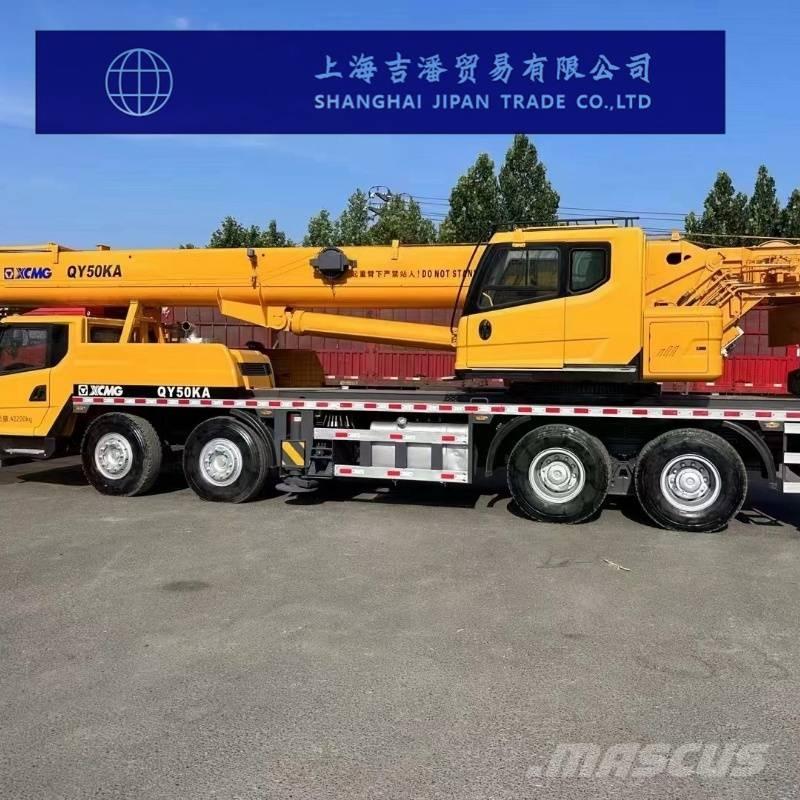

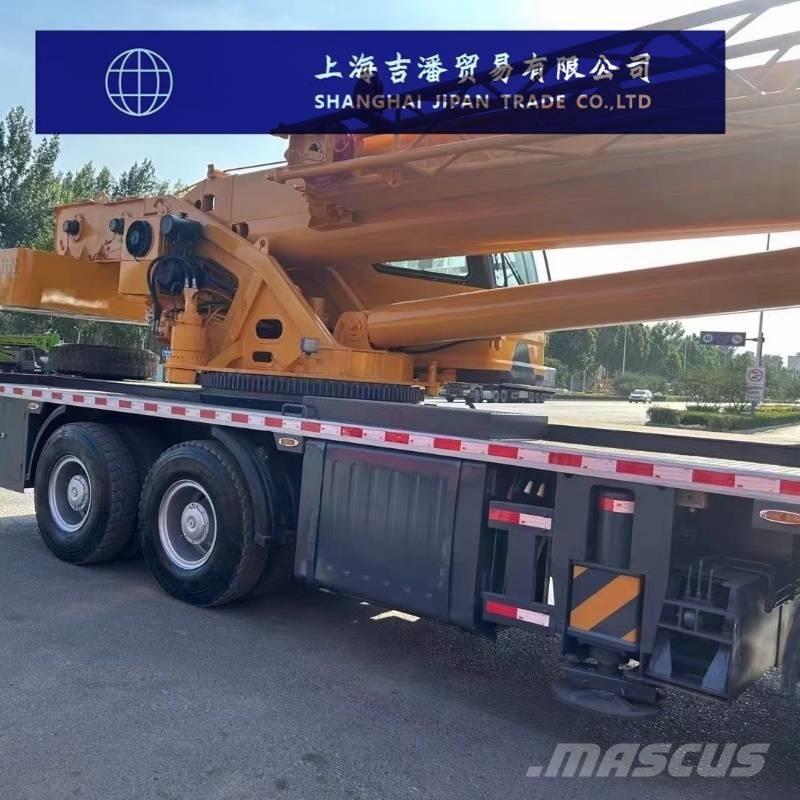

XCMG QY 50 KA

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter Details Overall Machine Length 13770mm Overall Machine Width 2800mm Overall Machine Height 3575mm Wheelbase 1470 + 4105 + 1350mm Track Width 2304/2304/2075/2075mm Total Mass in Travel State 41000kg (Model: XZJ5416JQZ50K), 42000kg (Model: XZJ5424JQZ50K) Front Axle Load 15000kg (Model: XZJ5416JQZ50K), 16000kg (Model: XZJ5424JQZ50K) Rear Axle Load 26000kg Engine Model WD615.334, WP10.336, WD615.338, WP10.375 Rated Engine Power 276kW/2200rpm, 247kW/2200rpm, 276kW/2200rpm, 275kW/2200rpm Maximum Travel Speed 80km/h Minimum Turning Diameter 24m Minimum Turning Diameter of Boom Head 28.158m Maximum Climbing Gradient 40% Minimum Ground Clearance 291mm Approach Angle 17° Departure Angle 11° Braking Distance ≤10m Fuel Consumption per 100km 42L Rated Total Lifting Capacity 50t Minimum Rated Radius 3m Lifting Moment of Basic Boom 1822kN·m Swing Radius of Turret Tail 3480mm Longitudinal Span of Outriggers 5.91m Transverse Span of Outriggers 6.9m (4.7m for Half-Extension) Length of Basic Boom 11.3m Length of Longest Main Boom 42.7m Length of Longest Main Boom + Jib 57.7m Slewing Speed 2r/min No-Load Single-Rope Speed of Main Hoisting Mechanism 130m/min No-Load Single-Rope Speed of Auxiliary Hoisting Mechanism 120m/min Full Extension Time of Boom 85s Luffing Time of Boom 40s
