INFORMATIE

Productgroep
Kranen voor alle terreinen
Merk / model

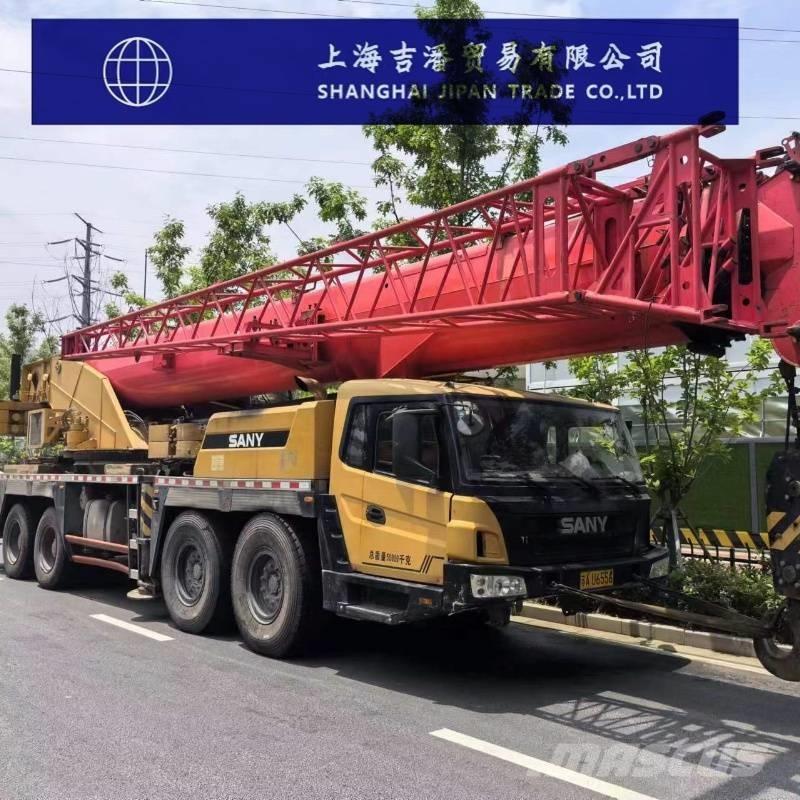

Sany STC 800
Bouwjaar
2019
Aantal gebruiksuren
3.200 h
Land
China
Algemene score
1
2
3
4
5
Mascus ID
97FCE760

PRIJZEN

Valuta kiezen

DETAILS

Voorraad nummer
1
Laatste inspectie
2025-08-27
Serienummer
1
Aantal vorige eigenaren
1
Totaalgewicht GVW
48.200 kg
Maximale hefcapaciteit
80 ton
Kentekennummer
1
Maximaal hefvermogen einde jib
8 ton
min. gieklengte
20 m
Emissieklasse
Fase V
Lengte van kraanarm
87 m
Min. beweegbare jib
3 m
Beweegbare jib
11,5 m
Jib lengte
87 m
Maximale hefhoogte
67 m
Kraantype
Vaste giek
Originele kleur
Original
Ondermotor
80
Motorfabrikant
Weicahi
Afmetingen (LxBxH)
15000 x 2800 x 3900 mm
Voortbeweging, wielen - rups
Wielaandrijving
Voorwaarden info/Garantie
1 year
Resterend profiel voorbanden
98
Resterend profiel achterbanden
2
Land van productie
China
Leveringsvoorwaarden
FCA, FOB, CIF, EXW
Certificaten
EPA, CE
Toebehoren
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.
Accessoires
Hijshaken
Overige informatie
Sany Heavy Industry STC800C6 crane parameter configuration Lifting capacity Maximum rated lifting capacity (t) 80 The maximum rated lifting torque (KN.m) is 3557 Maximum lifting height - full reach arm (m) 87 Maximum lifting capacity (tons) 45-90 tons Job speed parameters The maximum lifting speed of the main winch (m/min) is 135 The total extension time of the lifting boom (s) is 460 Rotation speed (rpm) 1.5 motor Chassis engine model Weichai WP10H Rated power (kw/rpm) 276/1900 Driving parameters Maximum travel speed (km/h) 90 Minimum turning radius (m) 12 Maximum climb (%) 49 Approach/Departure Angle (°) 18/13 Specifications of the whole machine The total length of the whole machine (mm) is 15000 The overall width of the whole machine (mm) is 2800 The overall height of the whole machine (mm) is 3900 Working weight (t) 50 Total counterweight (t) 26 Outrigger span Vertical × horizontal (m) 6.53*8.0
