Sany STC 700
Prijs excl. BTW
Afdrukken
INFORMATIE
Productgroep
Kranen voor alle terreinen
Merk / model
Sany STC 700
Bouwjaar
2018
Aantal gebruiksuren
3.800 h
Land
China
Algemene score
1
2
3
4
5
Mascus ID
E6737D98
PRIJZEN
Valuta kiezen
DETAILS
Voorraad nummer
1
Laatste inspectie
2025-08-27
Serienummer
1
Aantal vorige eigenaren
1
Totaalgewicht GVW
47.300 kg
Maximale hefcapaciteit
70 ton
Kentekennummer
1
Maximaal hefvermogen einde jib
8 ton
min. gieklengte
20 m
Emissieklasse
Fase V
Lengte van kraanarm
49,5 m
Min. beweegbare jib
3 m
Beweegbare jib
11,5 m
Jib lengte
49,5 m
Maximale hefhoogte
67 m
Kraantype
Vaste giek
Originele kleur
Original
Ondermotor
25
Motorfabrikant
Weicahi
Afmetingen (LxBxH)
15000 x 2800 x 3860 mm
Voortbeweging, wielen - rups
Wielaandrijving
Voorwaarden info/Garantie
1 year

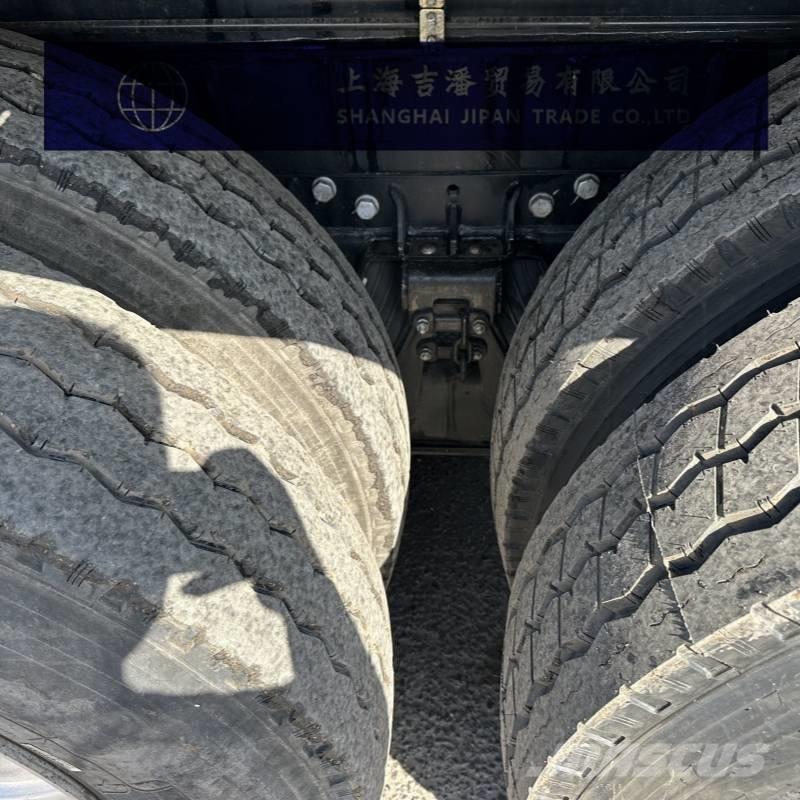

Resterend profiel voorbanden
98
Resterend profiel achterbanden
2
Land van productie
China
Leveringsvoorwaarden
FCA, FOB, CIF, EXW
Certificaten
EPA, CE
Toebehoren
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET
TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET
CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours:24 hours, holidays and Sundays
Contact: Lily
Whatsapp: +86 17756597429
Mobile:+86 17756597429
Wechat:17756597429
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accessoires
Hijshaken
Overige informatie
Sany Heavy Industry STC700T crane parameter configuration
Lifting capacity
Maximum rated lifting capacity (t) 70
The maximum rated lifting torque (KN.m) is 2916
Maximum lifting height - basic arm Xijib (m) 67
Maximum lifting capacity (tons) 45-90 tons
Lifting arm size
The basic number of arm joints is 5
The section type of the lifting arm is U-shaped
Lifting boom length - full extension arm (m) 49.5
Job speed parameters
The maximum lifting speed of the main hoist (m/min) is 130
The total extension time of the lifting boom (s) is 125
Slew speed (rpm) 1.7
motor
Chassis engine model Weichai WP9H350E50
Rated power (kw/rpm) 257/1900
Emission Standards State V.
Driving parameters
Maximum travel speed (km/h) 90
Minimum turning radius (m) 12
Maximum climb (%) 45
Approach/departure angle (°) 18/15
Minimum ground clearance (mm) 268
Specifications of the whole machine
The total length of the whole machine (mm) is 15000
The overall width of the whole machine (mm) is 2800
The overall height of the whole machine (mm) is 3860
Operating weight (t) 46
Total counterweight (t) 20
Outrigger span
Longitudinal × horizontal (m) 6.31*7.7
