Comet 22/2/10

Prijs excl. BTW

Prijs op aanvraag

Compnay LOGO
Images23Videos3

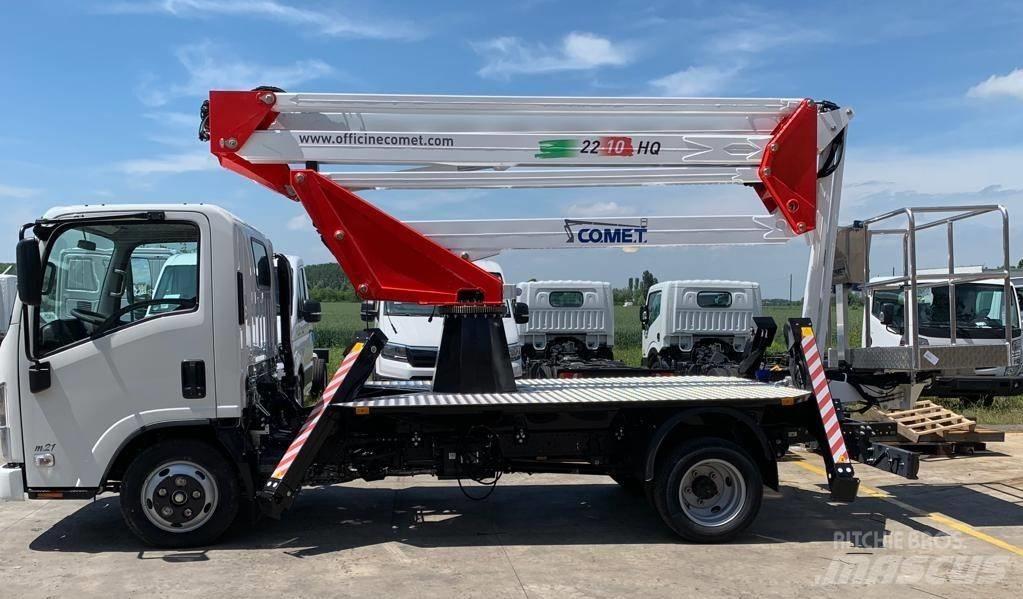

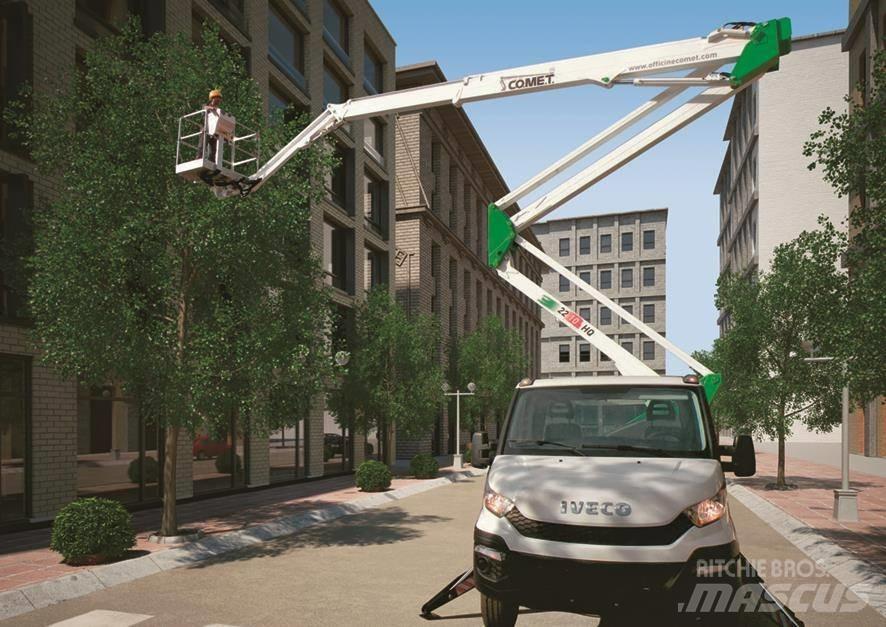

Comet 22/2/10 Auto hoogwerkers
Comet 22/2/10 Auto hoogwerkers
FavoriteFavoriet
shareDelen
Save searchZoekopdrachten bewaren
Afdrukken

INFORMATIE

Productgroep
Auto hoogwerkers
Merk / model
Comet 22/2/10
Bouwjaar
2025
Status
Nieuw/ongebruikt
Plaats
Castello D'Argile, Bologna
Land
Italië
Algemene score
1
2
3
4
5
Mascus ID
91DBF3E2

DETAILS

Werkhoogte
22 m
Type
Diesel
Type kraanarm
Knikarm
Maximaal horizontaal bereik
10 m
Emissieklasse
Fase VI / Niveau VI
Totaalgewicht GVW
3.500 kg
Maximale hefcapaciteit
200 kg
Originele kleur
Bianco
Merk onderstel
Comet
Land van productie
Italië
Leveringsvoorwaarden
EXW
Certificaten
CE
Documents
NEW-EUROSKY-HQ-18-22-BINGRU.pdf77FT00005-SCHEDA-TECNICA-NEW-ESK-22-2-10-JIB-HQ-ISUZU-M21-P2750.pdf77FT00004-SCHEDA-TECNICA-NEW-EUROSKY-22-2-10-HQ-JIB-SU-IVECO-DAILY-35S-P3450.pdf
Overige informatie
AERIAL WORK PLATFORM 22 M WITH JIB OF 35 CWT TRUCK Working height 21.5 m, Jib side 10 m, capacity 200 kg in the cage (no. 2 persons) 360 ° continuous rotation, low pressure hydraulic controls 100% No need for limiting lateral range (100% SAFE): the operator can move throughout the workspace without disruption while respecting the maximum capacity of the spacecraft of 200 kg Dimensions spacecraft aluminum: 1400x700x1100 mm Hydraulic Rotation ship: 90 ° + 90 °, 100% hydraulic controls that enable two movements at the same time, self-leveling of the spacecraft continuously and gradually with independent hydraulic circuit, on and off the vehicle engine from the spacecraft, Indicators of early warning and overload alarm in the cage, lamp centering arm in the rest position, Socket 230 V plug socket in the cage with anti-collision system for tower arm-cabin order not to hurt the car side to side or vertically moving the arm (buzzer and stop). Anti-collision spacecraft-not to knock the jib arm while rotating to the right or left side of the spacecraft (buzzer and stop) .Celle load: detection device of the load in the cage consisted of. 3 load cells and management card with redundant control of operation, visual and audible alarm-locking movement in case of overload All on Nissan Cabstar 35 q.li (pat B) other information and data sheets on the siteLaat meer zien

Bini Gru

Via Aldo Moro,62 40050 Castello D'Argile Bologna Italië
